mSATA Solid State Drives

mSATA solid state drives are some of the hottest SSDs on the market today, popping up in a variety of the latest mobile devices. MyDigitalSSD now offers Bullet Proof, BP3, BP4, and DDR2 Super Cache mSATA drives with blazing fast Read/Write speeds and large storage capacities for increased productivity over stock drives in Tablets, Ultrabooks, Hybrid Notebooks, and Desktop PCs.

Note: Solid State Drives DO NOT require defragmentation. It may decrease the lifespan of the drive.


Quick Navigation



MyDigitalSSD Super Boot 2 50mm SATA III/6G mSATA Solid State Drive

Details

Super Boot 2 | SB2 | 50mm mSATA | SATA III / 6G | PHISON S11 Controller

Super Boot 2: Turn Minutes Into Seconds

MyDigitalSSD Super Boot 2 solid state drives guarantee your computer is ready when you need it. SB2 SSDs eliminate long boot times and slow loading applications while boosting overall performance and reliability for an improved everyday user experience.

Pairing Toshiba TLC Flash and Phison's S11 controller, these easy-to-install 50mm SATA III 6Gb/s mSATA SSDs unleash your computer's full potential; delivering sequential read speeds up to 560MB/s for near-instant access to files and apps when clicked, increasing productivity up to 70X with faster multitasking and gaming load times.

Super Boot 2 mSATA 6G SSDs are ideal upgrade solutions for the latest ultra-thin laptops (Ultrabooks), Notebooks, ChromeBooks, Chromebox/NUC Mini PCs, and desktop workstations - PC or Mac. Like all MyDigitalSSD drives, SB2 SSDs run cool, silent, and energy-efficient; extending battery life in notebooks while better handling shock and vibration to keep your data safe on the go.

Why wait any longer? Switch to a Super Boot 2 and take your time back!

Features

  • Unequaled price to performance ratio
  • PHISON PS3111 controller
  • Toshiba TLC Toggle flash
  • Easy installation
  • Large storage capacity
  • Low power consumption
  • High-speed SATA III 6Gb/s interface
  • Withstand extreme shock and vibration
  • Supports DDR3 I/O interface
  • Power management supported
  • NCQ command set
  • SmartZIP™
  • RAID, SMART, and TRIM support
  • 3-year warranty

Note: Solid State Drives DO NOT require defragmentation. It may decrease the lifespan of the drive.

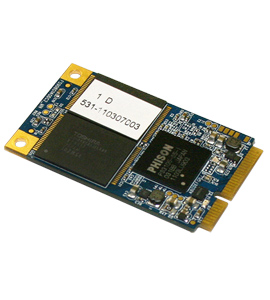

MyDigitalSSD SB2 mSATA 6G SSD

Where to Buy*

Buy this product at Amazon.com

USA

Buy this product at MyDigitalDiscount.com

USA

* Reseller prices may vary.

Performance Testing

Test Environment: ASRock Extreme6/3.1 / Intel Core i7-4790K 4.0GHz / 16GB RAM / Windows 10 Pro 64-bit / SATA M.2 Slot. Driver: storahci.

Disclaimer: Results may vary based on computer configuration, environment, and testing methods.

480GB (512GB)

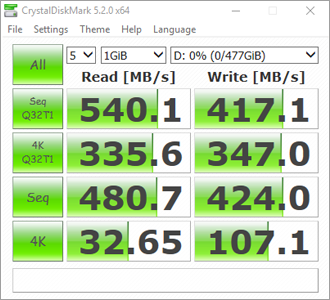

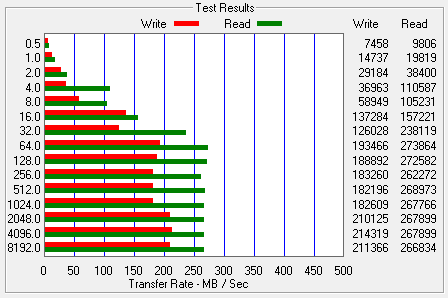

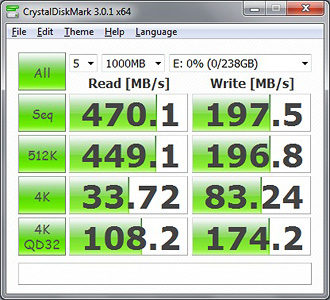

CrystalDiskMark Bench Results     ATTO Bench Results

240GB (256GB)

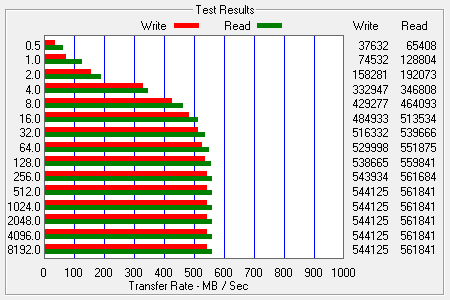

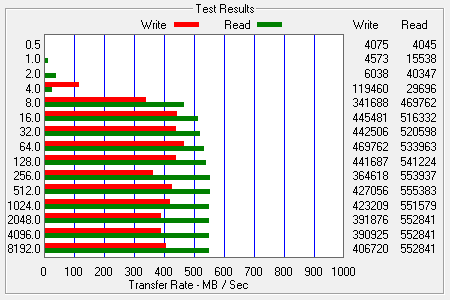

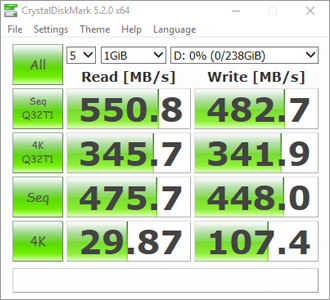

CrystalDiskMark Bench Results     ATTO Bench Results

120GB (128GB)

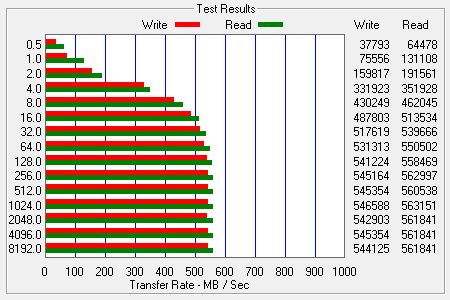

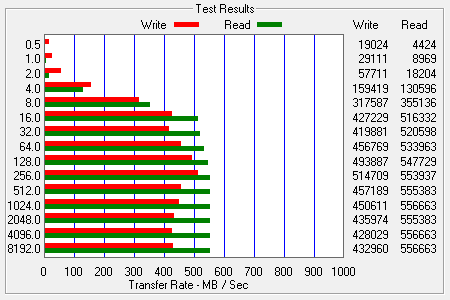

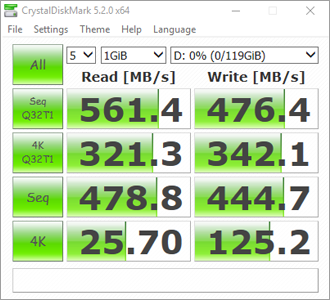

CrystalDiskMark Bench Results     ATTO Bench Results

Specifications

Capacity : SKU
7GB (8GB) : MDMS-SB2-0008 (OEM)
15GB (16GB) : MDMS-SB2-0016 (OEM)
30GB (32GB) : MDMS-SB2-0032 (OEM)
60GB (64GB) : MDMS-SB2-0064 (OEM)
120GB (128GB) : MDMS-SB2-0128
240GB (256GB) : MDMS-SB2-0256
480GB (512GB) : MDMS-SB2-0512
Interface: SATA III 6.0Gb/s
Form Factor: 50mm mSATA
NAND Flash: 8GB-64GB: Toshiba MLC Toggle NAND
128GB-512GB: Toshiba TLC Toggle NAND
Controller: Phison S11 (PS3111)
Max Read Speed: 560MB/sec (ATTO)
Max Write Speed: 500MB/sec (ATTO)
4K Random Read: 35MB/sec (CDM)
4K Random Write: 130MB/sec (CDM)
Access Time: 0.1 ms
Operation Temperature: 0 to 70°C
Storage Temperature: -40 to 85°C
Humidity: RH = 90% under 40°C
Shock: 1500G/0.5ms
Vibration: 80Hz~2000Hz/20G
Operating Voltage: 3.3V
Power Consumption Active: < 1,850 mW
Power Consumption Idle: < 280 mW
Power Consumption DEVSLP: < 5 mW
Dimensions: 50 x 30 x 4mm
Weight: < 5g
RAID Support: Yes
TRIM Support: Yes
SMART Support: Yes
NCQ: Up to 32 commands
MTBF: >2,000,000 hours
Advanced Flash Management: Static and Dynamic Wear Leveling
Bad Block Management
TRIM
SMART
Over-Provision
Firmware Update
SmartZIP™
Compliance: RoHS, FCC, CE, BSMI
Warranty: 3 Year

Return to top



MyDigitalSSD BP4e V2 50mm SATA III/6G mSATA Solid State Drive

Details

Bullet Proof 4 Eco V2 | 50mm mSATA | SATA III / 6G | PHISON S10 Controller

MyDigitalSSD's best-selling Bullet Proof 4 Eco SATA III 6Gb/s mSATA solid state drives now feature the Phison S10 controller for even better performance! Just look for the green V2 on the label to upgrade almost any 50mm mSATA powered device, including Tablets, UltraBooks, Notebooks, Desktop PCs, and more.

BP4e V2 SSDs are over provisioned featuring improved Random Read/Write performance and IOPS, extended performance endurance (no slow down no matter how much data you put on it), prolonged drive life, reliability, and low power consumption at the unequaled price to performance ratio synonymous with MyDigitalSSD Bullet Proof SSDs.

Backwards compatible with SATA II applications; BP4e V2 SSDs increase your productivity up to 70X by eliminating the bottle-neck of stock hard drives.

Highlights

  • Unequaled price to performance ratio
  • Phison S10 (PS3110) controller
  • Toshiba TLC Toggle NAND Flash
  • Large storage capacity
  • Easy installation
  • Improve boot up and application load times
  • High-speed SATA 6Gb/s (SATA III) interface
  • Backward compatible to SATA 3Gb/s (SATA II)
  • Withstand extreme shock and vibration
  • Support DDR3 I/O interface
  • Power management supported
  • NCQ command set
  • TRIM support
  • RAID support
  • SMART support
  • Three year replacement warranty

Note: Due to power requirements for MyDigitalSSD BP4e V2 drives, use of a BP4e V2 SSD as an external drive in combination with certain enclosures or adapters may cause overheating that could lead to an intermittent connection.

MyDigitalSSD BP4 V2 mSATA 6G SSD

Performance Testing

Test Environment: ASRock Extreme6/3.1 / Intel Core i7-4790K 4.0GHz / 16GB RAM / Windows 7 Ultimate 64GB / MyDigitalSSD mSATA to 2.5 inch Adapter. Driver: iAStorA 13.1.0.1058

Disclaimer: Results may vary based on computer configuration, environment, and testing methods.

480GB

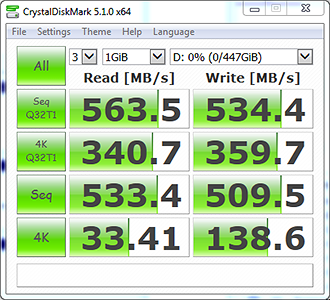

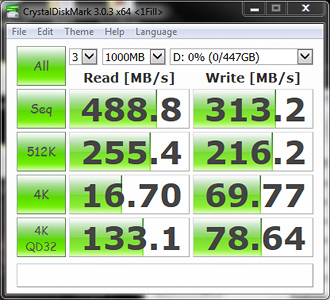

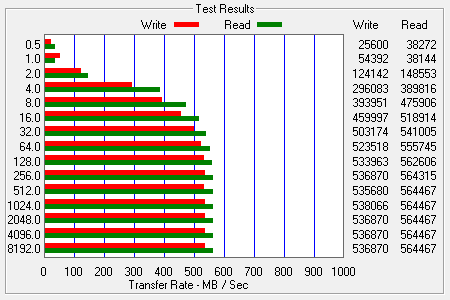

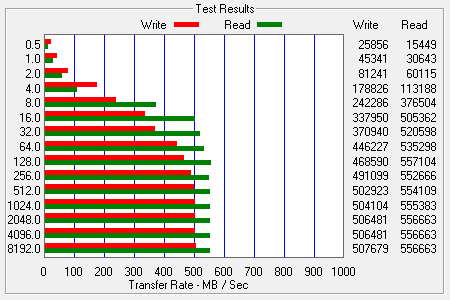

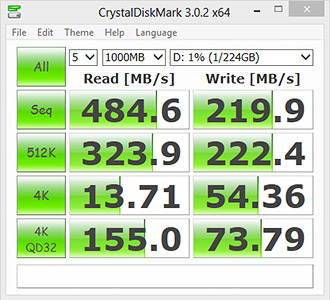

CrystalDiskMark Bench Results     ATTO Bench Results

240GB

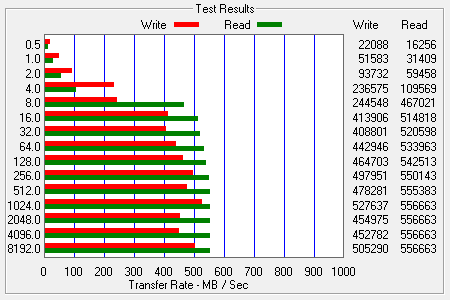

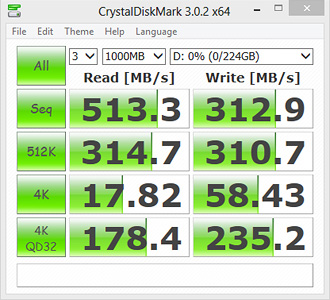

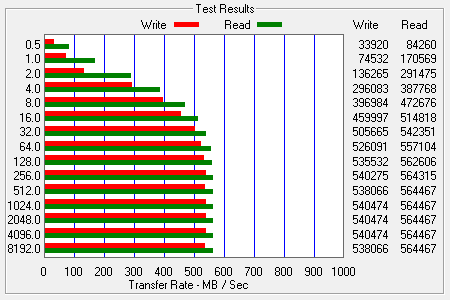

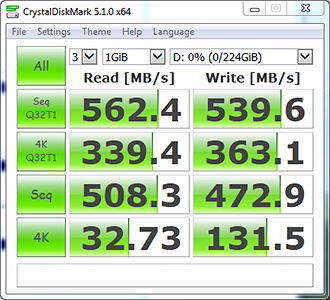

CrystalDiskMark Bench Results     ATTO Bench Results

120GB

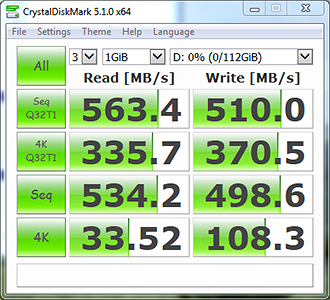

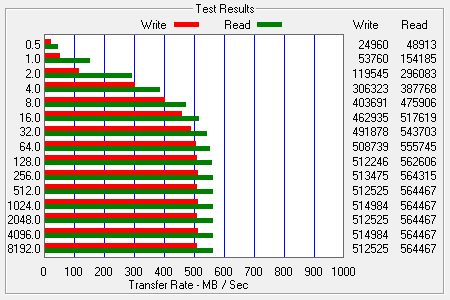

CrystalDiskMark Bench Results     ATTO Bench Results

Specifications

Capacity : SKU
120GB : MDMS-BP4e-128
240GB : MDMS-BP4e-256
480GB : MDMS-BP4e-512
Flash: Toshiba TLC Toggle NAND Flash
Form Factor: 50mm mSATA
Interface: Serial ATA: SATA III (6G)
Controller: Phison S10 (PS3110)
Read Rate: Up to 565MB/sec (ATTO)
Write Rate: Up to 540MB/sec (ATTO)
4K Read Rate: Up to 34MB/s (CDM)
4K Write Rate: Up to 140MB/s (CDM)
Access Time: 0.1 ms
Dimensions: 50 x 30 x 4mm
Weight: < 6g
RAID Support: Yes
TRIM Support: Yes
SMART Support: Yes
NCQ: Up to 32 commands
Operation Temperature: 0°C ~ +70°C
Storage Temperature: -40°C ~ +85°C
Operating Voltage 3V ± 5%
Humidity: RH = 95% under 55°C
Shock: 1500G/0.5ms
Vibration: 80-2000Hz/20G
Power Consumption Idle: < 0.5W
Power Consumption Active: < 0.9W
MTBF: > 2,000,000 hours
ECC Scheme: Support up to 72bit ECC correct per 1K Byte data
Compliance: RoHS / CE / FCC
OS Support
Including but not limited to:
Windows 10 / 8.1 / 8 / 7 / Vista / XP / CE
Mac OS X
Linux series: Fedora, Ubuntu, Solaris, etc.
DOS
PC Compatibility
Including but not limited to:
Acer W500
ASUS EP121
ASUS Eee Slate EP121
Dell Precision M4500, M4600, M6400, M6500
Fusion Garage JOOJOO
Google CR-48 Chrome
HP Envy 14 Beats
Lenovo K26, K47A, K47G
Lenovo IdeaPad Y460, Y470, Y560, Y570
Lenovo ThinkPad T420S, T420, T520, L420, L520, W520, X220
Lenovo ThinkPad Edge E220s, E320, E420s
Samsung Series 9
WeTab
Warranty: 3 Year

Return to top



MyDigitalSSD BP4 V2 50mm SATA III/6G mSATA Solid State Drive

Details

Bullet Proof 4 V2 | 50mm mSATA | SATA III / 6G | PHISON S10 Controller

MyDigitalSSD's best-selling Bullet Proof 4 SATA III 6Gb/s mSATA solid state drives now feature the Phison S10 controller for even better performance! Just look for the green V2 on the label to upgrade almost any 50mm mSATA powered device, including Tablets, UltraBooks, Notebooks, Desktop PCs, and more.

BP4 V2 SSDs are over provisioned featuring improved Random Read/Write performance and IOPS, extended performance endurance (no slow down no matter how much data you put on it), prolonged drive life, reliability, and low power consumption at the unequaled price to performance ratio synonymous with MyDigitalSSD Bullet Proof SSDs.

Backwards compatible with SATA II applications; BP4 V2 SSDs increase your productivity up to 70X by eliminating the bottle-neck of stock hard drives.

Highlights

  • Unequaled price to performance ratio
  • Phison S10 (PS3110) controller
  • Toshiba MLC Toggle NAND Flash
  • Large storage capacity
  • Easy installation
  • Improve boot up and application load times
  • High-speed SATA 6Gb/s (SATA III) interface
  • Backward compatible to SATA 3Gb/s (SATA II)
  • Withstand extreme shock and vibration
  • Support DDR3 I/O interface
  • Power management supported
  • NCQ command set
  • TRIM support
  • RAID support
  • SMART support
  • Three year replacement warranty

Note: Due to power requirements for MyDigitalSSD BP4 V2 drives, use of a BP4 V2 SSD as an external drive in combination with certain enclosures or adapters may cause overheating that could lead to an intermittent connection.

MyDigitalSSD BP4 V2 mSATA 6G SSD

Performance Testing

Test Environment: ASRock Extreme6/3.1 / Intel Core i7-4790K 4.0GHz / 16GB RAM / Windows 7 Ultimate 64GB / MyDigitalSSD mSATA to 2.5 inch Adapter. Driver: iAStorA 13.1.0.1058

Disclaimer: Results may vary based on computer configuration, environment, and testing methods.

480GB

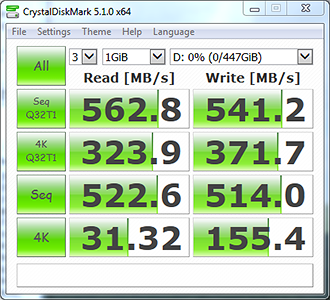

CrystalDiskMark Bench Results     ATTO Bench Results

240GB

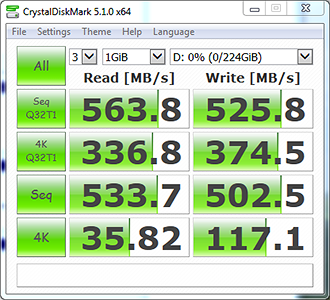

CrystalDiskMark Bench Results     ATTO Bench Results

120GB

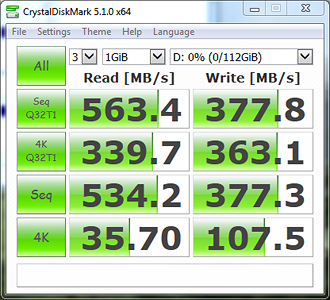

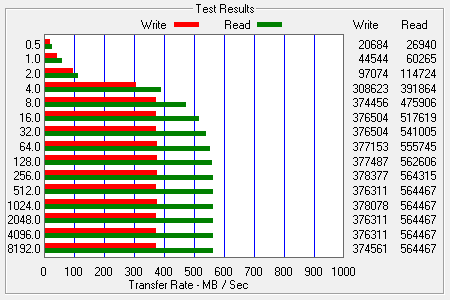

CrystalDiskMark Bench Results     ATTO Bench Results

Specifications

Capacity : SKU
120GB : MDMS-BP4-120
240GB : MDMS-BP4-240
480GB : MDMS-BP4-480
960GB : MDMS-BP4-960
Flash: Toshiba MLC Toggle NAND Flash
Form Factor: 50mm mSATA
Interface: Serial ATA: SATA III (6G)
Controller: Phison S10 (PS3110)
Read Rate: Up to 565MB/sec (ATTO)
Write Rate: Up to 545MB/sec (ATTO)
4K Read Rate: Up to 36MB/s (CDM)
4K Write Rate: Up to 155MB/s (CDM)
Access Time: 0.1 ms
Dimensions: 50 x 30 x 4mm
Weight: < 6g
RAID Support: Yes
TRIM Support: Yes
SMART Support: Yes
NCQ: Up to 32 commands
Operation Temperature: 0°C ~ +70°C
Storage Temperature: -40°C ~ +85°C
Operating Voltage 3V ± 5%
Humidity: RH = 95% under 55°C
Shock: 1500G/0.5ms
Vibration: 80-2000Hz/20G
Power Consumption Idle: < 0.5W
Power Consumption Active: < 0.9W
MTBF: > 2,000,000 hours
ECC Scheme: Support up to 72bit ECC correct per 1K Byte data
Compliance: RoHS / CE / FCC
OS Support
Including but not limited to:
Windows 10 / 8.1 / 8 / 7 / Vista / XP / CE
Mac OS X
Linux series: Fedora, Ubuntu, Solaris, etc.
DOS
PC Compatibility
Including but not limited to:
Acer W500
ASUS EP121
ASUS Eee Slate EP121
Dell Precision M4500, M4600, M6400, M6500
Fusion Garage JOOJOO
Google CR-48 Chrome
HP Envy 14 Beats
Lenovo K26, K47A, K47G
Lenovo IdeaPad Y460, Y470, Y560, Y570
Lenovo ThinkPad T420S, T420, T520, L420, L520, W520, X220
Lenovo ThinkPad Edge E220s, E320, E420s
Samsung Series 9
WeTab
Warranty: 3 Year

Return to top



MyDigitalSSD Super Boot Eco 50mm SATA III/6G mSATA SSD

Details

Super Boot Eco | 50mm mSATA | SATA III / 6G | PHISON S9 Controller

MyDigitalSSD Super Boot Eco (SBe) solid state drives feature the PHISON S9 controller and Micron MLC Sync NAND Flash to super charge today's UltraBooks, Notebooks, ChromeBooks, Chromebox/NUC Mini PCs, and Desktop PCs.

SBe SSDs are easy to install upgrades that provide users increased performance and efficiency with blazing fast Read/Write speeds while minimizing startup and application load times. Backwards compatible with SATA II applications; let the SBe SATA III 6.0Gb/s interface increase your productivity up to 70X in any device with an available 50mm mSATA port.

What are you waiting for? Unleash the true potential of your device today with extended performance endurance, prolonged drive life, reliability, and low power consumption - all at a wallet friendly price thanks to MyDigitalSSD.

Highlights

  • Unequaled price to performance ratio
  • Micron MLC Sync NAND Flash
  • Large storage capacity
  • Easy installation
  • Improve boot up and application load times
  • High-speed SATA 6Gb/s (SATA III) interface
  • Backward compatible to SATA 3Gb/s (SATA II)
  • Withstand extreme shock and vibration
  • Support DDR3 I/O interface
  • Power management supported
  • NCQ command set
  • TRIM support
  • RAID support
  • SMART support
  • Two year replacement warranty
Note: Solid State Drives DO NOT require defragmentation. It may decrease the lifespan of the drive.

MyDigitalSSD Super Boot Eco mSATA SSD

Performance Testing

Test Environment: Lenovo X220 using a 2.5" SATA 6G Bay w/ mSATA to 2.5" Adapter | Windows 8 | AHCI mode

64GB

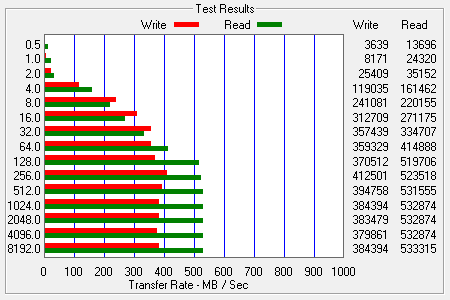

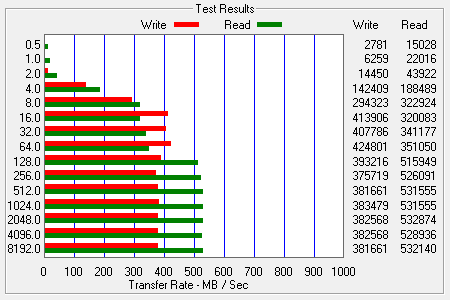

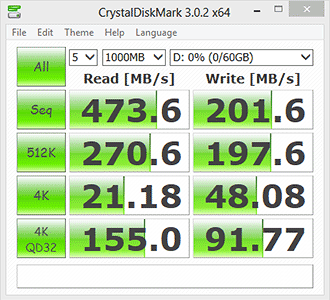

CrystalDiskMark 3.0.2 Bench Results     ATTO Bench Results

128GB

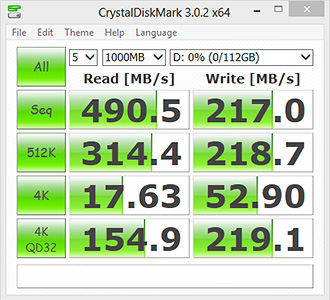

CrystalDiskMark 3.0.2 Bench Results     ATTO Bench Results

Disclaimer: Results may vary based on computer configuration, environment, and testing methods.

Specifications

Capacity : SKU
64GB : MDMS-SBe-064
120GB : MDMS-SBe-128
Interface: SATA III 6.0Gb/s
Form Factor: 50mm mSATA
NAND Flash: Micron MLC Sync NAND Flash
Controller: Phison S9 Series (PS3109)
Max Read Rate: 545MB/sec (ATTO)
Max Write Rate: 430MB/sec (ATTO)
Access Time: 0.1 ms
Operation Temperature: 0 to 70°C
Storage Temperature: -40 to 85°C
Operating Voltage: 3.3V ± 5%
Idle: < 0.5W
Active: < 0.9W
Dimensions: 50 x 30 x 4mm
Weight: < 5g
RAID Support: Yes
TRIM Support: Yes
NCQ: Up to 32 commands
MTBF: >2,000,000 hours
Advanced Flash Management: Sudden power-off recovery
Battery backup function
High and Reliable ECC capability up to 24bits/sector
S.M.A.R.T features optimized for SSD
Bit error monitoring and management
Dynamic and static wear-leveling
Dynamic bad block management
SMART commands and additional SSD monitoring
OS Support: Windows 10 / 8.1 / 8 / 7 / Vista / XP / CE
Mac OS X
Linux series: Fedora, Ubuntu, Solaris, etc.
DOS
Compliance: RoHS, FCC, CE, BSMI
Warranty: 2 Year

Return to top



MyDigitalSSD BP4e 50mm SATA III/6G mSATA Solid State Drive

Details

BP4e | Bullet Proof 4 Eco | 50mm mSATA | SATA III (6G) | PHISON S8 Controller

MyDigitalSSD Bullet Proof 4 Eco (BP4e) solid state drive (SSD) upgrades feature the PHISON S8 controller and Micron MLC Sync NAND Flash to super charge today's UltraBooks, Notebooks, ChromeBooks, Chromebox/NUC Mini PCs, and Desktop PCs.

BP4e SSDs are over provisioned to offer industry leading Random Read/Write performance and IOPS, extended performance endurance (no slow down no matter how much data you put on it), prolonged drive life, reliability, and low power consumption - all at the unequaled price to performance ratio synonymous with MyDigitalSSD Bullet Proof SSDs.

Backwards compatible with SATA II applications; let the BP4e SATA III 6.0Gb/s interface increase your productivity up to 70X by eliminating the bottle-neck of a stock hard drive and unleashing your device's true potential.

Highlights

  • Unequaled price to performance ratio
  • Micron MLC Sync NAND Flash
  • Large storage capacity
  • Easy installation
  • Improve boot up and application load times
  • High-speed SATA 6Gb/s (SATA III) interface
  • Backward compatible to SATA 3Gb/s (SATA II)
  • Withstand extreme shock and vibration
  • Support DDR3 I/O interface
  • Power management supported
  • NCQ command set
  • TRIM support
  • RAID support
  • SMART support
  • Two year replacement warranty

About the Controller

The Phison S-Module III S8 controller delivers all the advantages of Flash Disk technology with a Serial ATA III interface and is fully compliant with the standard mSATA form factor. The S-Module III S8 is based on the mSATA form factor, which is generated by JEDEC, designed to operate at a maximum operating frequency of 300MHz with 40MHz external crystal.

The S8 can reach 550MB/s throughput based on ONFI/Toggle NAND (with DDR3 cache enabled and measured by CrystalDiskMark) with markedly lower power consumption than that of a traditional Hard Drive.

Note: Solid State Drives DO NOT require defragmentation. It may decrease the lifespan of the drive.

MyDigitalSSD BP4e Bullet Proof 4 Eco mSATA SSD

Performance Testing

Test Environment: Lenovo X220 using a 2.5" SATA 6G Bay w/ mSATA to 2.5" Adapter | Windows 8 | AHCI mode

240GB

CrystalDiskMark Bench Results     ATTO Bench Results

480GB

CrystalDiskMark Bench Results     ATTO Bench Results

Disclaimer: Results may vary based on computer configuration, environment, and testing methods.

Reviews & Awards

Specifications

Capacity : SKU
120GB : MDMS-BP4e-128
240GB : MDMS-BP4e-256
480GB : MDMS-BP4e-512
Flash: Micron MLC Sync NAND Flash
Form Factor: 50mm mSATA
Interface: Serial ATA: SATA III (6G)
Controller: Phison S-Module III S8
Read Rate: Up to 550MB/sec
Write Rate: Up to 530MB/sec
Access Time: 0.1 ms
Dimensions: 49.73 x 31.5 x 3.26mm
Weight: < 6g
RAID Support: Yes
TRIM Support: Yes
SMART Support: Yes
NCQ: Up to 32 commands
Operation Temperature: 0°C ~ +70°C
Storage Temperature: -40°C ~ +85°C
Operating Voltage 3.3V ± 5%
Humidity: RH = 95% under 55°C
Shock: 1500G/0.5ms
Vibration: 80-2000Hz/20G
Power Consumption Idle: < 0.5W
Power Consumption Active: < 0.9W
MTBF: > 2,000,000 hours
ECC Scheme: Support up to 72bit ECC correct per 1K Byte data
Compliance: RoHS / CE / FCC
OS Support
Including but not limited to:
Windows 10 / 8.1 / 8 / 7 / Vista / XP / CE
Mac OS X
Linux series: Fedora, Ubuntu, Solaris, etc.
DOS
Warranty: 2 Year

Return to top



MyDigitalSSD Super Boot Drive 50mm SATA III/6G mSATA SSD

Details

Super Boot Drive | 50mm mSATA | SATA III (6G) | PHISON S9 Controller

Your time is valuable. MyDigitalSSD Super Boot Drive helps you make the most of it!

Featuring the industry leading PHISON S9 controller and Toshiba A19nm MLC Toggle NAND Flash, MyDigitalSSD Super Boot Drive SSDs are easy to install upgrades that provide users increased efficiency with blazing fast Read/Write speeds while minimizing startup and application load times in any device with a 50mm mSATA port - all at a wallet friendly price.

Looking for a boost without sacrificing storage space? MyDigitalSSD Super Boot Drives allow high speeds with a backwards compatible SATA III 6.0Gb/s interface for unmatched performance compared to similar low density drives when used by itself or alongside a spinning hard drive.

Give your NUC, notebook, tablet, Ultrabook, Chromebook/Box, or hybrid PC (a laptop or desktop with mSATA and SATA ports) the upgrade it deserves, give it a Super Boot Drive SSD and discover what you've been missing.



MyDigitalSSD Super Boot Drive mSATA SSD

Performance Testing

Test Environment: Lenovo X220 using a 2.5" SATA 6G Bay w/ mSATA to 2.5" Adapter | Windows 8 | AHCI mode
Disclaimer: Results may vary based on computer configuration, environment, and testing methods.

16GB

CrystalDiskMark 3.0.2 Bench Results     ATTO Bench Results

32GB

CrystalDiskMark 3.0.2 Bench Results     ATTO Bench Results

64GB

CrystalDiskMark 3.0.2 Bench Results     ATTO Bench Results

128GB

CrystalDiskMark 3.0.2 Bench Results     ATTO Bench Results

Firmware Updates

Specifications

Capacity : SKU
8GB : MDMS-SB-008
16GB : MDMS-SB-016
32GB : MDMS-SB-032
64GB : MDMS-SB-064
128GB : MDMS-SB-128
Interface: SATA III (6G)
Form Factor: 50mm mSATA
Controller: Phison S9 Series (PS3109)
NAND Flash: Toshiba A19nm MLC Toggle NAND Flash
Max Read Rate: 550MB/sec (ATTO)
Max Write Rate: 430MB/sec (ATTO)
Access Time: 0.1 ms
Operation Temperature: 0 to 70°C
Storage Temperature: -40 to 85°C
Dimensions: 49.73 x 31.5 x 3.26mm
Weight: < 6g
Input Voltage: 3V ± 5%
Idle: < 0.5W (50 mA)
Active: < 0.9W (230 mA Write, 170 mA Read)
RAID Support: Yes
TRIM Support: Yes
NCQ: Up to 32 commands
MTBF: >2,000,000 hours
Features: Sudden power-off recovery
Battery backup function
High and Reliable ECC capability up to 24bits/sector
S.M.A.R.T features optimized for SSD
Bit error monitoring and management
Dynamic and static wear-leveling
Dynamic bad block management
SMART commands and additional SSD monitoring
Warranty: 3 Year

Return to top

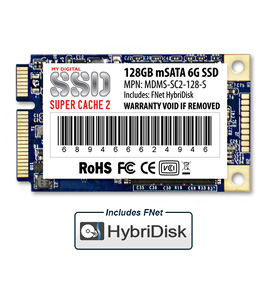

MyDigitalSSD Super Cache2 50mm SATA III/6G mSATA SSD

Details

Super Cache 2 | SATA III (6G) | PHISON S9 Controller | FNet HybriDisk Software License Code

Boost your PC's performance by pairing your existing HDD with the NEW Super Cache 2 SSD featuring the S9 Controller!

MyDigitalSSD has created the Super Cache 2 (SC2) for PC users who are looking for a low cost option to increase performance without sacrificing storage capacity in both mobile and desktop computers.

Unlike other SSDs where you sacrifice capacity for speed, the SC2 is designed to be used in tandem with a conventional spinning hard drive to increase productivity in any PC that has the extra mSATA slot that is quickly becoming standard in today's notebooks and desktop mother boards.

Are you an enthusiast on a budget? Take that expensive high-capacity SSD off of your Buy List. The Super Cache 2 gets you SSD speed and performance without the big SSD price tag.

Often smaller capacity solid state drives mean slower speeds, this is not the case with the SC2. The Super Cache 2 features the PHISON S9 controller that allows for high queue depth speeds and SATA III (6G) R./W speeds for unmatched performance compared to similar low density drives.

As seen in the CrystalDiskMark test below, the SC2 excels in 4K and 4K QD32 speeds, 20-50X faster than your HDD, resulting in better caching that maximizes the drive's ability to organize, prioritize, and execute the commands that come from programs with demanding performance needs.


Why buy a Super Cache 2 SSD?

Easy to Install - Upgrade your system without all of the confusion, the Super Cache 2 SSD is an upgrade for any novice user to install. Simply plug it in, boot up, and run the free FNet HybriDisk cache software provided to get started. Experienced users may alternatively elect to use the SSD as a boot drive.

Improved Performance - Shortly after install, your most frequently used programs, files, and applications will be cached. The more you use your computer the faster it will go.

Improved Efficiency - Because the items you use will be located and retrieved from the Super Cache 2 SSD, your spinning hard drive will require less use - resulting in reduced noise and heat while improving battery life. This leads to a better computer user experience that provides increased productivity using less time and energy.


About FNet HybriDisk Software

As a bonus, each MyDigitalSSD Super Cache 2 drive includes a free license code for FNet HybriDisk cache software to increase your overall PC speed up to 5X!

FNet HybriDisk is a easy-to-use low maintenance cache software that increases the overall performance of your computer by using a low-capacity SSD as a high-performance "cache" for your existing HDD. HybriDisk uses intelligent caching algorithms to continuously monitor the way you are using applications and data, and automatically keeps all of your "hot" data ready on the SSD for optimal performance.

FNet HybriDisk Features

  • Solid state hybrid drive delivers SSD-like performance with hard drive capacity options.
  • FNet Smart-Swap Technology (SST) customizes performance by aligning to user needs for overall improved system response.
  • Reduces boot times by up to 60%+.
  • Smart and real-time caching of the applications and data that the user needs.
  • • Easy to install, use and maintain.
  • Selectable quantity of SSD storage to be used.
  • Maintains full safety of all data which when SSD failure or removal, as well as un-normal shutdowns resulting from power outages.
  • Smart, invisibly and silently in the background, with user-friendly interface.

Click here to download FNet HybriDisk Software from MyDigitalDiscount.com

Note: FNet HybriDisk is an optional software, to be used exclusively with MyDigitalSSD Super Cache 2 SSDs. FNet HybriDisk will not work if used in the same capacity on other solid state drives. Super Cache 2 SSDs are compatible with all cache solutions and can alternatively be used as a boot drive for operating systems or important programs.

MyDigitalSSD Super Cache 2 mSATA SSD

Performance Testing

Test Environment: Lenovo X220 using a 2.5" SATA 6G Bay w/ mSATA to 2.5" Adapter | Windows 8 | AHCI mode
Disclaimer: Results may vary based on computer configuration, environment, and testing methods.

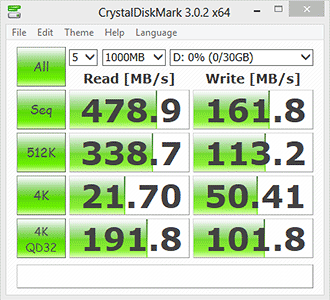

32GB

CrystalDiskMark 3.0.2 Bench Results     ATTO Bench Results

64GB

CrystalDiskMark 3.0.2 Bench Results     ATTO Bench Results

128GB

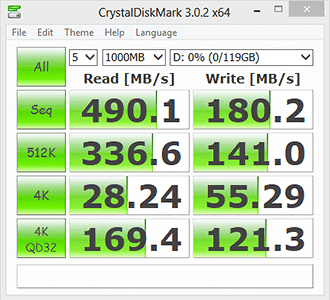

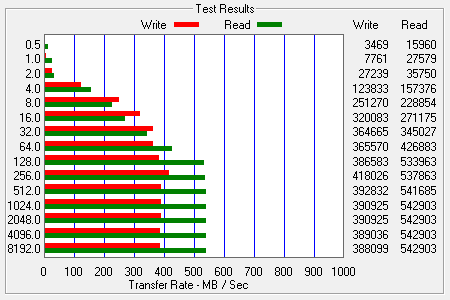

CrystalDiskMark 3.0.2 Bench Results     ATTO Bench Results

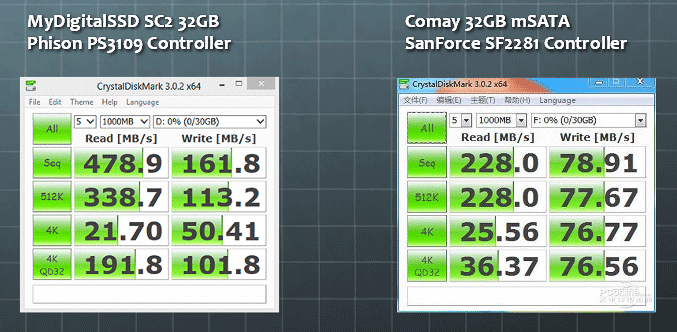

Cache SSD Quick Comparison

Comparing the MyDigitalSSD Super Cache 2's Phison S9 Controller to a SandForce SF2281 Controller
Click here to view the full PDF.

Reviews & Awards

Firmware Updates

Specifications

Capacity : SKU
24GB : MDMS-SC2-024-S
32GB : MDMS-SC2-032-S
64GB : MDMS-SC2-064-S
128GB : MDMS-SC2-128-S
Interface: SATA III (6G)
Form Factor: 50mm mSATA
Controller: Phison S9 Series (PS3109)
NAND Flash: Toshiba A19nm MLC Toggle NAND Flash
Max Read Rate: 550MB/sec (ATTO)
Max Write Rate: 430MB/sec (ATTO)
Access Time: 0.1 ms
Operation Temperature: 0 to 70°C
Storage Temperature: -40 to 85°C
Dimensions: 49.73 x 31.5 x 3.26mm
Weight: < 6g
Input Voltage: 3V ± 5%
Idle: < 0.5W (50 mA)
Active: < 0.9W (230 mA Write, 170 mA Read)
RAID Support: Yes
TRIM Support: Yes
NCQ: Up to 32 commands
MTBF: >2,000,000 hours
Features: Sudden power-off recovery
Battery backup function
High and Reliable ECC capability up to 24bits/sector
S.M.A.R.T features optimized for SSD
Bit error monitoring and management
Dynamic and static wear-leveling
Dynamic bad block management
SMART commands and additional SSD monitoring
PC Compatibility
ASUS Eee Slate EP121
Dell Precision M4500, M4600, M6400, M6500
Fusion Garage JOOJOO
Google CR-48 Chrome
HP Envy 14 Beats
Lenovo K26, K47A, K47G
Lenovo IdeaPad Y460, Y470, Y560, Y570
Lenovo ThinkPad T420S, T420, T520, L420, L520, W520, X220
Lenovo ThinkPad Edge E220s, E320, E420s
Samsung Series 9
WeTab
Warranty: 3 Year

Return to top



MyDigitalSSD BP4 50mm SATA III/6G mSATA Solid State Drive

Details

The Next Generation of Bullet Proof SSD Upgrades Have Arrived

MyDigitalSSD proudly introduces the BP4 50mm SATA III 6Gb/s mSATA Solid State Drive for many Tablets, UltraBooks, Hybrids (HDD/mSATA Notebooks), and Desktop PCs.

BP4 SSDs are over provisioned featuring improved Random Read/Write performance and IOPS, extended performance endurance (no slow down no matter how much data you put on it), prolonged drive life, reliability, and low power consumption at the unequaled price to performance ratio synonymous with MyDigitalSSD Bullet Proof SSDs.

Backwards compatible with SATA II applications; let the BP4 increase your productivity up to 70X by eliminating the bottle-neck of stock hard drives.

Highlights

  • Unequaled price to performance ratio
  • Toshiba A19nm MLC Toggle NAND Flash
  • Large storage capacity
  • Easy installation
  • Improve boot up and application load times
  • High-speed SATA 6Gb/s (SATA III) interface
  • Backward compatible to SATA 3Gb/s (SATA II)
  • Withstand extreme shock and vibration
  • Support DDR3 I/O interface
  • Power management supported
  • NCQ command set
  • TRIM support
  • RAID support
  • SMART support
  • Three year replacement warranty

About the Controller

MyDigitalSSD BP4 SSDs feature the Phison S-Module III S8 controller to deliver all the advantages of Flash Disk technology with the Serial ATA III interface, fully compliant with standard mSATA form factor. The S-Module III S8 is based on the mSATA form factor which is generated by JEDEC, designed to operate at a maximum operating frequency of 300MHz with 40MHz external crystal.

The S8 can reach 500MB/s throughput based on ONFI/Toggle NAND (with DDR3 cache enabled and measured by CrystalDiskMark) with markedly lower power consumption than that of a traditional Hard Drive.

Note: Solid State Drives DO NOT require defragmentation. It may decrease the lifespan of the drive.

MyDigitalSSD DDR2 Super Cache mSATA SSD

Performance Testing

Test Environment: Lenovo X220 using a 2.5" SATA 6G Bay w/ mSATA to 2.5" Adapter | Windows 8 | AHCI mode
Disclaimer: Results may vary based on computer configuration, environment, and testing methods.

240GB

CrystalDiskMark Bench Results     ATTO Bench Results

120GB

CrystalDiskMark Bench Results     ATTO Bench Results

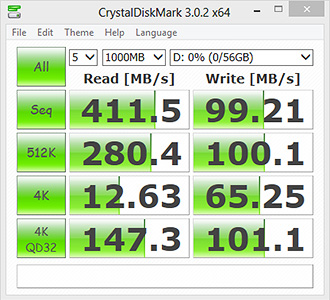

60GB

CrystalDiskMark Bench ResultsATTO Bench Results

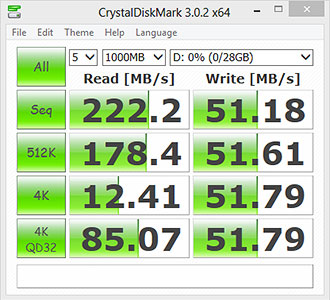

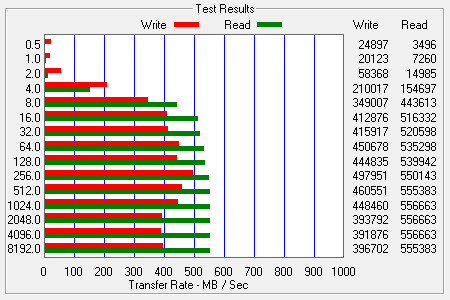

30GB

CrystalDiskMark Bench Results     ATTO Bench Results

Reviews & Awards

Firmware Updates

Specifications

Capacity : SKU
30GB : MDMS-BP4-030
60GB : MDMS-BP4-060
120GB : MDMS-BP4-120
240GB : MDMS-BP4-240
Flash: Toshiba A19nm MLC Toggle NAND Flash
Form Factor: 50mm mSATA
Interface: Serial ATA: SATA III (6G)
Controller: Phison S-Module III S8
Read Rate: Up to 560MB/sec
Write Rate: Up to 520MB/sec
4K Read Rate: Up to 18MB/s
4K Write Rate: Up to 66MB/s
Access Time: 0.1 ms
Dimensions: 49.73 x 31.5 x 3.26mm
Weight: < 6g
RAID Support: Yes
TRIM Support: Yes
SMART Support: Yes
NCQ: Up to 32 commands
Operation Temperature: 0°C ~ +70°C
Storage Temperature: -40°C ~ +85°C
Operating Voltage 3V ± 5%
Humidity: RH = 95% under 55°C
Shock: 1500G/0.5ms
Vibration: 80-2000Hz/20G
Power Consumption Idle: < 0.5W
Power Consumption Active: < 0.9W
MTBF: > 2,000,000 hours
ECC Scheme: Support up to 72bit ECC correct per 1K Byte data
Compliance: RoHS / CE / FCC
OS Support
Including but not limited to:
Windows 7 / Windows Vista / Windows XP / WinCE
Mac OS X
Linux series: Fedora, Ubuntu, Solaris, etc.
DOS
PC Compatibility
Including but not limited to:
Acer W500
ASUS EP121
ASUS Eee Slate EP121
Dell Precision M4500, M4600, M6400, M6500
Fusion Garage JOOJOO
Google CR-48 Chrome
HP Envy 14 Beats
Lenovo K26, K47A, K47G
Lenovo IdeaPad Y460, Y470, Y560, Y570
Lenovo ThinkPad T420S, T420, T520, L420, L520, W520, X220
Lenovo ThinkPad Edge E220s, E320, E420s
Samsung Series 9
WeTab
Warranty: 3 Year

Return to top

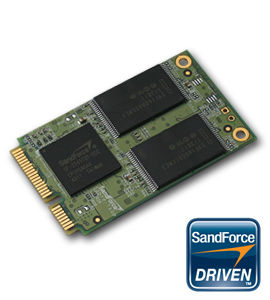

MyDigitalSSD SMART SATA III/6G SandForce mSATA Solid State Drive

Details

MyDigitalSSD mSATA drives are now SandForce Driven!

MyDigitalSSD Smart Series 50mm mSATA III (6G) solid state drives have adopted the advanced SandForce SSD controller and Synchronous NAND Flash, to deliver affordable yet high performance upgrades to replace stock drives found in recent mSATA-equipped Notebooks, Ultrabooks, Tablets, hybrid HDD/mSATA setups, and Desktop computers.

Smart Series drives are easy to install, regardless of computer experience, and eliminate the bottle-neck of the slower stock drives. They increase performance and productivity thanks to blistering read and write speeds up to 550MB/s; all while lowering energy consumption and prolonging battery life.

Smart Series drives are compatible with SATA 3Gbps, and supports mainstream OS, such as Windows\ MAC\ Linux\ Unix\ Solaris\ Vxworks. Backwards compatible with SATA II applications, Smart Series drives will peg SATA II BUS speeds in most cases.

Features

  • Unequaled price to performance ratio
  • Easy remove and replace installation
  • SandForce SF-2281 Controller and 25nm Synchronous NAND Flash Technology
  • Utilizes new Firmware that increases SSD usable capacity over common SF controller based SSDs by 7%
  • SATA Revision 3.0 compliant: High-speed SATA 6Gb/s interface
  • Compatible with SATA 1.5G/s, 3Gb/s interface
  • Support DDR3 I/O interface
  • DuraWrite technology extends the endurance of the SSD
  • Intelligent Block Management & Wear Leveling
  • Intelligent Read Management
  • Intelligent "Recycling" for advanced free space management (Garbage Collection)
  • Intelligent Data Retention optimization
  • Best-in-Class ECC protection for longest data retention and drive life
  • Power/Performance Balancing
  • Thermal Threshold Management
  • Native TRIM support (OS support required)
  • S.M.A.R.T support
  • NCQ support up to 32 commands
  • Five year replacement warranty

Note: Solid State Drives DO NOT require defragmentation. It may decrease the lifespan of the drive.

MyDigitalSSD DDR2 Super Cache mSATA SSD

About the Controller

Today's award-winning SandForce Driven SSDs are well known for their performance and features. The SandForce SF-2281 the second generation of SandForce SSD Processors - continue accelerating SSD deployment in enthusiast and mainstream client computing platforms. The SF-2281 is an ideal solution for portable storage applications where power consumption, boot-up time, application performance, responsiveness, and small form factor are important. The Client SSD Processors have integrated enhanced DuraClass Technology that is architected to leverage today's densest SLC and MLC NAND flash memory. They deliver best-in-class performance, endurance, security, and power efficiency in a "DRAM-less", single chip solution.

Endurance and Longevity

As the geometries of each generation of flash memory evolves and shrink in order to dramatically lower $/GB, the overall flash endurance is dropping at a very high rate. The 2x/3xnm NAND flash memory has less than 5K P/E cycles. The memory of tomorrow will likely be even lower than that. DuraWrite technology optimizes writes to the flash memory over conventional controllers increasing the overall endurance and reliability of the complete SSD. Highly intelligent block management and wear leveling also extends the overall endurance. With this technology, SSD manufacturers can offer their high volume, client customers enterprise class reliability and at least 5-year lifecycles.

Performance and Power Optimization

SSDs greatly outperform traditional HDDs, and in many cases reach the limits of the bus interface. Advanced high speed SATA interfaces have been implemented in newer systems to remove this performance bottleneck. SSDs are perfect to take advantage of that higher speed interface. SandForce SSD Processors deliver performance that maximizes the throughput of a 6Gb/s SATA interface with balanced read/write speeds. In extremely low-power environments, the SF-2281 can tune total SSD power consumption vs. performance by limiting the number of simultaneously active flash devices. It also supports an ultra-low power sleep mode to maximize battery life.

Client Computing Security

Data security is becoming a critical component in the digital age. SandForce SF-2281 SSD Processors feature high-level security protocols to protect the security of data stored in flash memory. DuraClass technology automatically stores data in a highly secure AES-128 hardware encrypted format that double encrypts the data. The SF-2281 SSD Processors also optionally support TCG Opal security requirements. An optional disk-level password can be required prior to system boot adding an extra level of data security assurance for business travelers carrying confidential information.

Data Protection and Reliability

The SF-2281 SSD Processors provide data protection that surpasses the leading high-performance enterprise HDDs used today. This comes from a combination of a superior higher-level BCH ECC algorithm with up to 55 bits/512 Byte sector protection and the unique RAISE (Redundant Array of Independent Silicon Elements) technology. RAISE provides the protection and reliability of RAID on a single drive without the 2x write overhead of parity. This capability is transparent to the end-user and provides peace-of mind for mobile SSD OEMs knowing their customer's data is protected.

Performance Testing

Test Environment: Lenovo Thinkpad X220 / Windows 7 Pro 64 -SP1 / Intel Core i5-2520M / QM67 Chipset / 4GB DDR3-1333 / MSAHCI Storage drivers / SATA 6G Tests performed in the 7MM Bay with the Renice mSATA to SATA II/6G adapter.

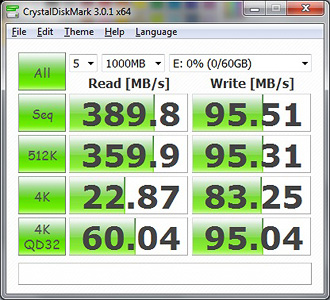

64GB

CrystalDiskMark Bench Results     ATTO Bench Results

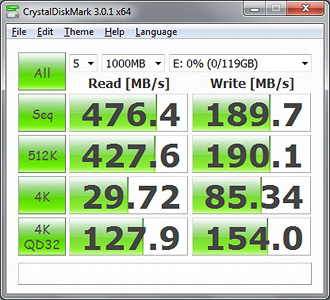

128GB

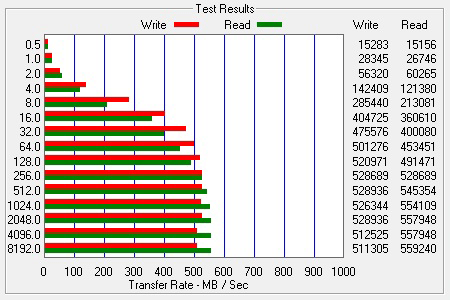

CrystalDiskMark Bench Results     ATTO Bench Results

256GB

CrystalDiskMark Bench Results     ATTO Bench Results

Reviews & Awards

Firmware Updates

Specifications

Capacity : SKU
64GB : MDMS-SFIII-064
128GB : MDMS-SFIII-128
256GB : MDMS-SFIII-256
Flash: MLC 25nm Synchronous NAND
Form Factor: 50mm mSATA
Interface: Serial ATA: SATA III (6G)
Controller: SandForce SF-2281 Controller
Read Rate: 550MB/sec
Write Rate: 530MB/sec
4K Read Rate: 35,000 IOPS
4K Write Rate: 86,000 IOPS
Access Time: 0.1 ms
Dimensions: 50.95mm x 30.0mm x 4.1mm
Weight: < 50g
RAID Support: No
TRIM Support: Yes
NCQ: Up to 32 commands
Operation Temperature: 0°C ~ +70°C
Storage Temperature: -40°C ~ +85°C
Operating Voltage 3V ± 5%
Humidity: RH = 95% under 55°C
Shock: 1500G/0.5ms
Vibration: 80-2000Hz/20G
Power Consumption: 0.6W Idle, 3W Active
MTBF: 1,000,000 hours
ECC Correction: 55 bits / 512 bytes
Data Encryption: AES-128
Compliance: RoHS / CE / FCC
OS Support
Including but not limited to:
Windows 7 / Windows Vista / Windows XP / WinCE
Mac OS X
Linux series: Fedora, Ubuntu, Solaris, etc.
DOS
PC Compatibility
Including but not limited to:
ASUS Eee Slate EP121
Dell Precision M4500, M4600, M6400, M6500
Fusion Garage JOOJOO
Google CR-48 Chrome
HP Envy 14 Beats
Lenovo K26, K47A, K47G
Lenovo IdeaPad Y460, Y470, Y560, Y570
Lenovo ThinkPad T420S, T420, T520, L420, L520, W520, X220
Lenovo ThinkPad Edge E220s, E320, E420s
Samsung Series 9
WeTab
Warranty: 5 Year

Return to top

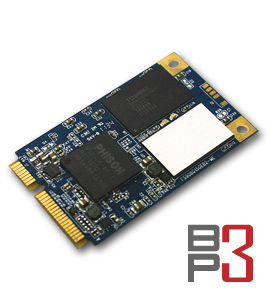

MyDigitalSSD BP3 50mm SATA III/6G mSATA Solid State Drive

Details

UltraBook, Tablet, and Hybrid HDD/mSATA owners rejoice!

The cost efficient high speed mSATA upgrade you've been looking for is here with the reliability you've come to expect from MyDigitalSSD Bullet Proof SSDs.

Introducing MyDigitalSSD Bullet Proof 3 (BP3) 50mm mSATA III solid state drives for Notebooks, Ultrabooks, Tablets, and Desktop computers. BP3 drives are easy to install SSD upgrades that eliminate the bottle-neck of stock hard drives (HDDs) and double the performance of SATA II SSDs with speed boosts that not only increase productivity but lower energy consumption, prolonging battery life.

Backwards compatible with SATA II applications, BP3 drives will peg SATA II BUS speeds in most cases.

About the Controller

MyDigitalSSD BP3 SSDs feature the Phison S-Module III S8 controller to deliver all the advantages of Flash Disk technology with the Serial ATA III interface, fully compliant with standard mSATA form factor. The S-Module III S8 is based on the mSATA form factor which is generated by JEDEC, designed to operate at a maximum operating frequency of 300MHz with 40MHz external crystal. Its capacity could provide a wide range up to 256GB. Also it can reach 500MB/s throughput based on ONFI/Toggle NAND (with DDR3 cache enabled and measured by CrystalDiskMark). Also the power consumption of mSATA module is much lower than traditional Hard Drive.

Highlights

  • Unequaled price to performance ratio
  • 24nm Toshiba Toggle-Mode NAND Flash
  • Large storage capacity
  • Easy remove and replace installation
  • SATA Revision 3.0 compliant: High-speed SATA 6Gb/s interface
  • Compatible with SATA 1.5G/s, 3Gb/s interface
  • Support DDR3 I/O interface
  • Power management supported
  • NCQ command set
  • TRIM support
  • RAID support
  • Three year replacement warranty

Features

  • High and Reliable ECC capability up to 24bits/sector
  • Bit error monitoring and management
  • Dynamic and static wear-leveling
  • Dynamic bad block management
  • ONFI2.0 and Toggle2 Interface support
  • Supports 1.8V and 3.3V voltage level
    - Supports 1.8V for ONFI Flash
    - Supports 3.3V for conventional Asynchronous Flash
  • DDR3 Interface
    - 16 bit data bus
    - Clock Rate: 480MHz

Note: Solid State Drives DO NOT require defragmentation. It may decrease the lifespan of the drive.

MyDigitalSSD BP3 50mm SATA 6G mSATA SSD

Performance Testing

Test Environment: Lenovo Thinkpad X220 / Windows 7 Pro 64 -SP1 / Intel Core i5-2520M / QM67 Chipset / 4GB DDR3-1333 / MSAHCI Storage drivers / SATA 6G Tests performed in the 7MM Bay with the Renice mSATA to SATA II/6G adapter.

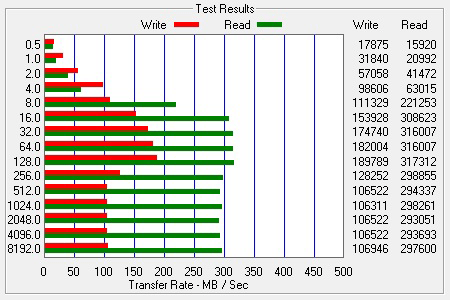

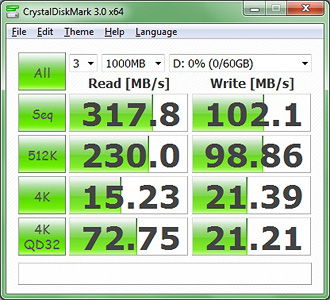

64GB (Intel IASTOR drivers)

CrystalDiskMark Bench Results     ATTO Bench Results

128GB

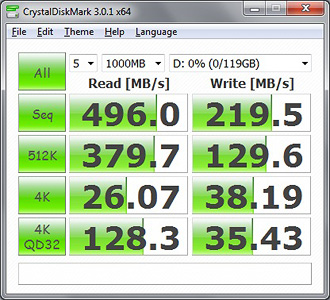

CrystalDiskMark Bench Results     ATTO Bench Results

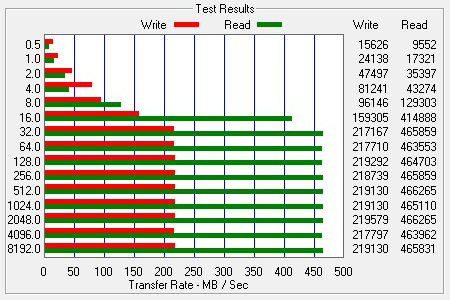

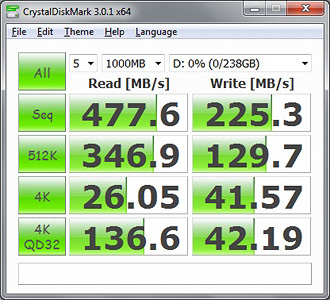

256GB

CrystalDiskMark Bench Results     ATTO Bench Results

Firmware Updates

Specifications

Capacity : SKU
32GB : MDMS-BP3-032
64GB : MDMS-BP3-064
128GB : MDMS-BP3-128
256GB : MDMS-BP3-256
NAND Flash: MLC Toshiba 24nm Toggle NAND
Form Factor: 50mm mSATA (MINI SATA PCI-E)
Interface: Serial ATA: SATA III (6G)
Read Rate: Up to 560MB/sec*
Write Rate: Up to 470MB/sec*
4K Read Rate: Up to 30,000 IOPS
4K Write Rate: Up to 45,000 IOPS
Access Time: 0.1 ms
Dimensions: 49.73 x 31.5 x 3.26mm
Operation Temperature: 0 to 70°C
Storage Temperature: -40 to 85°C
Humidity: RH = 95% under 55°C
Shock: 1500G/0.5ms
Vibration: 80-2000Hz/20G
Acoustic: 0dB
Weight: < 6g
RAID Support: Yes
TRIM Support: Yes
NCQ: Up to 32 commands
Input Voltage: 3V ± 5%
Idle: < 0.5W (50 mA)
Active: < 0.9W (230 mA Write, 170 mA Read)
MTBF: >2,000,000 hours
PC Compatibility
ASUS Eee Slate EP121
Dell Precision M4500, M4600, M6400, M6500
Fusion Garage JOOJOO
Google CR-48 Chrome
HP Envy 14 Beats
Lenovo K26, K47A, K47G
Lenovo IdeaPad Y460, Y470, Y560, Y570
Lenovo ThinkPad T420S, T420, T520, L420, L520, W520, X220
Lenovo ThinkPad Edge E220s, E320, E420s
Samsung Series 9
WeTab
Note: • Booting feature from Windows/Linux
• Specifications are subject to vary based on use.

* R/W speeds after Firmware update is applied
Warranty: 3 Year

Return to top


MyDigitalSSD Bullet Proof 50mm mSATA (Mini SATA PCI-e) SSD

Details

MyDigitalSSD mSATA Solid State Drives are the perfect price to performance upgrade solution for Dell and Lenovo notebook users.

Why should I choose MyDigitalSSD when I upgrade?

Performance
MyDigitalSSD mSATA SSDs deliver over 200MB/s sustained read/write speeds while offering random read/write speeds up to 40X that of even the fastest traditional 2.5 inch hard drive.

Price
MyDigitalSSD mSATA price per gigabyte is unmatched at around $1.8 per GB compared to other mSATA vendors at around $2.5 per GB, equaling a 30% savings.

Reliability
MyDigitalSSD products are manufactured in Taiwan at the same production facility used by the largest flash memory and SSD suppliers in the world including SanDisk. Additionally, MyDigitalSSD uses only Grade A Toshiba Flash and Phison controllers resulting in less than a .02% SSD mortality rate. These key factors make MyDigitalSSD mSATA drives the ideal upgrade solution for increased productivity over stock laptop, netbook, or tablet PC hard drives.

Features

  • Up to 128GB of storage capacity
  • Read speed up to 270MB/sec
  • Write speed up to 200MB/sec
  • 4kb Random Read IOPS: 35,000
  • RAID Support
  • TRIM Support
  • Sudden power-off recovery
  • Dynamic bad block management
  • SMART commands and additional SSD monitoring
MyDigitalSSD 50mm Bullet Proof mSATA SSD

Performance Testing

Results courtesy of TweakTown.com, click here for full test details.

CrystalDiskMark 3.0 Bench Results    ATTO Bench Results

Reviews

Firmware Updates

Specifications

Capacity : SKU
16GB : MDMS-5016
32GB : MDMS-5032
64GB : MDMS-5064
128GB : MDMS-50128
Interface: SATA II (Serial ATA)
Form Factor: 50mm mSATA (MINI SATA PCI-E)
NAND Flash: MLC
Max Read Rate: 270MB/sec
Max Write Rate: 200MB/sec
4kb Random Read: 35,000 IOPS
Access Time: 0.1 ms
Dimensions: 49.73 x 31.5 x 3.26mm
Operation Temperature: 0 to 70°C
Storage Temperature: -40 to 85°C
Weight: < 6g
RAID Support: Yes
TRIM Support: Yes
NCQ: Up to 32 commands
Input Voltage: 3V ± 5%
Idle: < 0.5W (50 mA)
Active: < 0.9W (230 mA Write, 170 mA Read)
MTBF: >2,000,000 hours
Features: Sudden power-off recovery
Battery backup function
High and Reliable ECC capability up to 24bits/sector
S.M.A.R.T features optimized for SSD
Bit error monitoring and management
Dynamic and static wear-leveling
Dynamic bad block management
SMART commands and additional SSD monitoring
PC Compatibility
ASUS Eee Slate EP121
Dell Precision M4500, M4600, M6400, M6500
Fusion Garage JOOJOO
Google CR-48 Chrome
HP Envy 14 Beats
Lenovo K26, K47A, K47G
Lenovo IdeaPad Y460, Y470, Y560, Y570
Lenovo ThinkPad T420S, T420, T520, L420, L520, W520, X220
Lenovo ThinkPad Edge E220s, E320, E420s
Samsung Series 9
WeTab
Warranty: 3 Year

Return to top

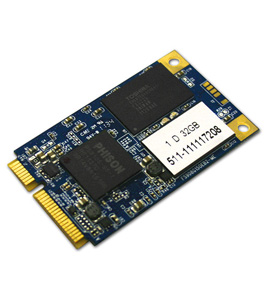

MyDigitalSSD DDR2 Super Cache 50mm mSATA SSD Solid State Drive

Details

The MyDigitalSSD DDR2 Super Cache mSATA SSD is nothing less than the next step in the evolution of SSD.

It allows computer builders and enthusiasts to merge conventional HDD storage with SSD speed in small form factor Laptops, Netbooks, Ultrabooks and Desktops without breaking the bank. It is also the 1st mSATA SSD to feature Toshiba DDR2 NAND flash for faster data transfer and power savings.

It is a Cache Drive for Desktops & Laptops with Intel® Smart Response Technology or 3rd Party Caching Software

If you are a manufacturer of computers contemplating adopting Intel's new Smart Response Technology (SRT), or 3rd party caching software, and looking for the edge on your competition then look no further than the MyDigitalSSD Super Cache SSD. The Super Cache SSD will allow you to compete in the low cost PC market with an end product who's performance will run circles around most mid range offerings fitted only with a Hard Disk Drive (HDD). Current SSD offerings are between 10 and 40 times faster than your average HDD but to get the quantity of storage that customers demand you would have to spend around $300-400 on a good SSD solution. MyDigitalSSD's offering achieves the same goal but for as little as $60 + the cost of the HDD.

Computer enthusiast on a budget? The Super Cache SSD is your saving grace offering performance of a professional high end rig without spending a fortune on a large SSD main drive.

Or a Boot Drive for Desktop & Laptop computers

You can place your OS and some important applications on this drive to dramatically improve computer response times for bringing up your most used applications while storing your data on your HDD. This set up will yield approximately 10% faster speeds vs. the Cache Drive set up but it is a little more complicated and time consuming.

Highlights

  • 1st mSATA SSD with asynchronous DDR2 NAND for fast data transfers and power savings.
  • 16GB & 32GB storage capacity
  • Blazing fast speeds up to 270MB/s Read and 100MB/s Write
  • Best price to performance on the market
  • Boot Drive or Cache Drive

About Toggle-Mode Double Data Rate 2.0 (DDR2) NAND Flash - For Improved Performance

Toggle-Mode NAND is a DDR NAND solution designed to consume less power than synchronous DDR NAND flash by eliminating the clock signal typically used in synchronous DDR memories.

Toshiba DDR Toggle-Mode 2.0 NAND is suitable for high performance solid state storage applications, including enterprise storage.

With an asynchronous interface similar to that used in conventional NAND, the Toggle-Mode DDR Flash NAND requires no clock signal, which means that it uses less power and has a simpler system design when compared to competing synchronous NAND alternatives. The DDR interface in Toggle-Mode NAND uses a Bidirectional DQS to generate input/output signals (I/Os) using the rising and falling edge of the write erase signal and offers a ten-fold increase over the 40Mbps single data rate NAND that is widely used today.

MyDigitalSSD DDR2 Super Cache mSATA SSD

Performance Testing

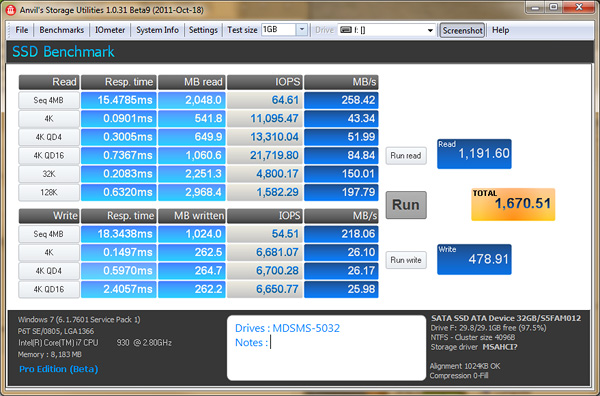

Anvil Storage Utilities 1.0.31 Bench Results

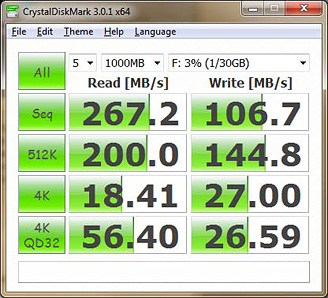

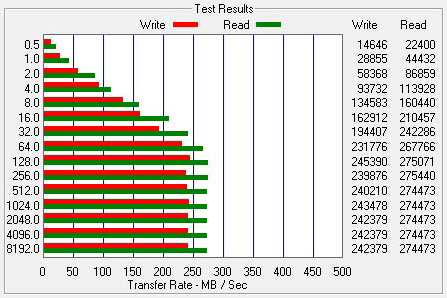

CrystalDiskMark 3.0.1 Bench Results     ATTO Bench Results

Specifications

Capacity : SKU
16GB : MDSMS-5016
32GB : MDSMS-5032
Interface: SATA II (Serial ATA)
Form Factor: 50mm mSATA (MINI SATA PCI-E)
NAND Flash: MLC
Max Read Rate: 270MB/sec
Max Write Rate: 110MB/sec
4kb Random Read: 35,000 IOPS
Access Time: 0.1 ms
Dimensions: 49.73 x 31.5 x 3.26mm
Operation Temperature: 0 to 70°C
Storage Temperature: -40 to 85°C
Weight: < 6g
NCQ: Up to 32 commands
Input Voltage: 3V ± 5%
Idle: < 0.5W (50 mA)
Active: < 0.9W (230 mA Write, 170 mA Read)
MTBF: >2,000,000 hours
RAID Support: Yes
TRIM Support: Yes
Features: Sudden power-off recovery
Battery backup function
High and Reliable ECC capability up to 24bits/sector
S.M.A.R.T features optimized for SSD
Bit error monitoring and management
Dynamic and static wear-leveling
Dynamic bad block management
SMART commands and additional SSD monitoring
PC Compatibility
ASUS Eee Slate EP121
Dell Precision M4500, M4600, M6400, M6500
Fusion Garage JOOJOO
Google CR-48 Chrome
HP Envy 14 Beats
Lenovo K26, K47A, K47G
Lenovo IdeaPad Y460, Y470, Y560, Y570
Lenovo ThinkPad T420S, T420, T520, L420, L520, W520, X220
Lenovo ThinkPad Edge E220s, E320, E420s
Samsung Series 9
WeTab
Warranty: 3 Year

Return to top
