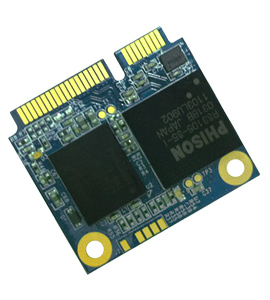

MyDigitalSSD Bullet Proof mSATA Mini SATA II Solid State Drive

MyDigitalSSD Bullet Proof mSATA Mini Solid State Drives (SSD) deliver all the advantages of Flash Disk technology with the Serial ATA I/II interface, fully compliant with standard mSATA form factor. SATA drives are replacing the older and slower (PATA) interface in embedded environments.

The MyDigitalSSD mSATA Mini is based on the mSATA form factor which is generated by JEDEC, designed to operate at a maximum operating frequency of 150MHz with 30MHz external crystal. Its capacity could provide a wide range from 4GB to 32GB. Also it can reach up to 120MB/s read as well as 48MB/s write high performance based on MLC flash (with 64MB DDR enabled and measured by CrystalDiskMark v3.0). The power consumption of Flash Disk is much lower than traditional Hard Drive.

Electrical/Physical Interface

• SATA interface
  - Support SATA 1.5Gbps and 3Gbps interface
• DDR1 IO
  - Support DDR1 I/O interface
• Mobile-DDR IO
  - Support mobile-DDR I/O interface
• Flash IO
  - Support 1.8V and 3.3V voltage level
  - Support 1.8V for ONFI Flash
  - Support 3.3V for conventional Asynchronous Flash

Controller Features

• SATA Revision 2.6 compliant
• Compatible with SATA 1.5Gbps and 3Gbps interface
• Power management supported
• Support expanded register for SATA protocol 48 bits addressing mode
• Embedded BIST function of SATA PHY for low cost mass production

NAND Flash Interface

• Build-in hardware ECC circuit (48bit/2KB)
• Support all types of SLC and MLC Large Block 8KB/page NAND flash
• ONFI2.0 Interface support: 4 channels max
• Bus Width: 8/16 bit
• Contain 1pc TSOP/ULGA Flash

Mobile-DDR Interface

• 16 bit data bus
• Data Rate: 320Mbps
• Support Capacity: 64MB

Drive Features

• Build in 32 bits micro-controller
• UART
• GPIO
