SSD & HDD Accessories

MyDigitalSSD now offers solid state drive (SSD) and hard drive (HDD) accessories to make the most out of your next upgrade. Whether you're in the market for an enclosure to clone your existing drive or an adapter to take advantage of mSATA speeds in your desktop/workstation, we're here to help.


Quick Navigation




MyDigitalSSD M2X+ USB 3.1 Gen 2 Combo PCIe NVMe / SATA M.2 SSD Adapter Enclosure

Details

M2X+ | PCIe NVMe (M-Key) / SATA (B+M-Key) M.2 SSD | USB 3.1 Gen 2

Transform your SATA or NVMe M.2 SSD into an ultra-fast ultra-portable pocket drive

The latest in the best-selling M2X series, the MyDigitalSSD M2X+ USB 3.1 Gen 2 M.2 SSD adapter enclosure offers both PCIe NVMe (M-Key) and SATA (B+M-Key) solid state drive compatibility with 80mm (2280), 60mm (2260), 42mm (2242), and 30mm (2230) form factors, ultra-high-speed data transfers, and the lowest power consumption yet for prolonged use and efficiency.

Featuring a durable yet lightweight aluminum housing with USB-C and USB-A connectivity, the M2X+ provides near-instant access of up to 2TB of data anywhere, anytime. Additionally, its award-winning heatsink design helps prevent SSD overheating and ensures peak performance even under heavy use.

The M2X+ is OS independent and fully bus-powered, creating a versatile external solid-state solution with a range of use including, high-speed storage, data backup, cloning an existing drive, running a mobile operating system, and more.

Get more from your M.2 SSD, pair it with the M2X+ today!

SuperSpeed+ USB 3.1 Gen 2 Performance

Backup and save files faster than ever over USB with the M2X+

Utilizing the Realtek RTL9210B chipset, the M2X+ offers PCIe NVMe speeds up to 10Gb/s and SATA speeds up to 6Gb/s with minimal power consumption connected to a Thunderbolt 3 or USB 3.1 Gen 2 port - double the transfer rate of USB 3.1 Gen 1.

The RTL9210B chipset also supports TRIM command for SSD and complies with USB Mass Storage Class Bulk-Only Transport (BOT) and USB Attached SCSI Protocol (UASP), maximizing the performance of any M.2 SSD used in the M2X+.

Additionally, the M2X+ is backward compatible with USB 3.1 Gen 1 (USB 3.0) and USB 2.0 devices at their respective data transfer rates.

Durable Lightweight Design Keeps SSD Safe and Cool

Built to protect your data at home or on the go, the M2X+ is an easy-to-carry enclosure, weighing less than 2 ounces, that features a sleek, crush-resistant aluminum housing that safeguards against shock and vibration.

Its grooved fin heatsink design aids heat dissipation during use to prevent overheating and thermal throttling*, ensuring a long life expectancy from your drive.

* For best results, use in combination with included thermal pad. Results may vary depending on environment.

Fully Bus-Powered

The M2X+ enclosure is powered directly through the USB port, eliminating the need to carry an additional power cord.

Plug and Play

Access your files from any USB-compliant notebook or device with this hot-swappable plug and play M2X+ enclosure. No additional drivers or software required.

USB-C and USB-A Compatible

Each MyDigitalSSD M2X+ includes two 9-inch USB 3.1 cables for hassle-free connectivity in either USB Type-C (USB-C) or USB Type-A (USB-A) devices.

Mounting Screw Kit

The M2X+ also includes M.2 SSD mounting screws with a mini screwdriver for quick and convenient drive installation.

Notes

  1. MyDigitalSSD M2X+ adapter enclosures are NOT compatible with AHCI PCI-Express M.2 SSDs, M.2 PCIe devices including WiFi and capture cards, mSATA SSDs, or any other non-M.2 form factor SSDs.
  2. Performance may be limited based on the file system, source data files, and system specifications.
  3. SSDs removed from computers, or formatted on one system, may have OS-specific file systems not recognized by either Windows or macOS. exFAT file system format is recommended when working with both Windows and macOS computers.
MyDigitalSSD M2X+ USB 3.1 Gen 2 Combo PCIe NVMe / SATA M.2 SSD Adapter Enclosure with USB-C Cable

Where to Buy*

Buy this product at Amazon.com

USA

Buy this product at MyDigitalDiscount.com

USA

* Reseller prices may vary.

Features

  • Realtek RTL9210B chipset for high-speed performance with low power consumption
  • Supports PCIe NVMe (M-Key) and SATA (B+M-Key) M.2 SSDs up to 2TB
  • Supports 2280 / 2260 / 2242 / 2230 length M.2 SSDs
  • Supports high (double-sided) and low (single-sided) profile M.2 SSDs
  • Lightweight, shock and crush-resistant aluminum casing
  • Grooved fin heatsink design reduces overheating and thermal throttling
  • USB 3.1 Gen 2 (10Gbps) interface
  • USB 3.0 and USB 2.0 compatible
  • UASP, BOT, and TRIM support
  • Power/activity LED indicator
  • Fully bus-powered
  • Plug and play
  • Hot swappable
  • OS independent, no software or drivers required
  • Includes both USB Type-C and USB 3.1 (Type-A) cables
  • 1 year warranty

Specifications

SKU: MDM2XPLUS-USB
Interface / Bus Type: USB 3.1 Gen 2
Chipset: Realtek RTL9210B
Capacity: Up to 2TB
Compatible Drive Types: PCIe 3.0 NVMe (M-Key)
SATA (B+M-Key)
Max Data Transfer Rates: PCIe 3.0 NVMe: 10 Gbps
SATA III: 6 Gbps
Compatible Form Factors: M.2 2280 (80mm)
M.2 2260 (60mm)
M.2 2242 (42mm)
M.2 2230 (30mm)
Max Drive Length: 80mm
Drive Installation: Fixed
Drive Bays: 1
Operating Temperature: 0°C ~ 40°C
Storage Temperature: -10°C ~ 65°C
Operating Humidity: 10% ~ 90% RH
Storage Humidity: 5% ~ 95% RH
Voltage: 5V
LED Indicator: 1 - White (Power & Activity)
Power Source: USB-Powered
Housing Color: Matte Black
Housing Material: Aluminum
Dimensions: 99mm x 42mm x 13mm
Weight: 1.7 oz (48g)
Weight with SSD: 1.76 oz (50g)
4Kn Support: Yes
UASP Support: Yes
BOT Support: Yes
TRIM Support: Yes
MTBF: 1,000,000 hours
OS Compatibility: OS Independent
Software Required: None
Drivers Required: None
Compliance: RoHS / CE / FCC
Package Contents: • MyDigitalSSD M2X+ USB 3.1 Gen 2 M.2 SSD Adapter Enclosure
• 9" USB-C to USB-C Cable
• 9" USB-C to USB A Cable
• M.2 SSD Thermal Pad
• M.2 SSD Mounting Screw Kit
• Mini Screwdriver
Warranty: 1 Year

Return to top



MyDigitalSSD M2X USB 3.1 Gen 2 M.2 PCIe NVMe SSD Adapter Enclosure

Details

M2X | 2280 / 2260 / 2242 M.2 M | PCIe NVMe | USB 3.1 Gen 2 Enclosure Adapter

The MyDigitalSSD M2X external USB 3.1 Gen 2 adapter enclosure allows users to bring NVMe speeds with them on the go by turning any PCIe M.2 M (M key) solid state drive into an ultra-portable pocket drive.

Featuring a durable lightweight aluminum casing with USB-C and USB-A connectivity, the M2X enclosure provides near-instant access of up to 2TB of data anywhere, anytime thanks to a grooved heatsink design that combats high heat issues commonly found in small form factor SSDs and ensures peak performance even under heavy use.

M2X enclosure adapters are compatible with 80mm (2280), 60mm (2260), and 42mm (2242) M.2 M form factors, OS independent, and fully bus powered for a variety of uses including high-speed storage, backing up data, cloning an existing drive, running a mobile operating system, and more.

Get more from your NVMe M.2 SSD, try an M2X today!

SuperSpeed+ USB 3.1 Gen 2 Performance

The M2X features JMicron's JMS583 USB 3.1 Gen 2 to PCIe Gen3 x2 bridge controller that offers data transfer speeds up to 10Gbps, double the transfer rate of USB 3.1 Gen 1 (USB 3.0).

The JMS583 controller also supports TRIM command for SSD and complies with both of USB Mass Storage Class Bulk-Only Transport (BOT) and USB Attached SCSI Protocol (UASP), maximizing the performance of any PCIe NVMe SSD used in the M2X.

Additionally, the M2X enclosure adapter is backward compatible with USB 3.0 (USB 3.1 Gen 1) and USB 2.0 devices at their respective data transfer rates.

Durable Lightweight Design Keeps SSD Safe and Cool

Weighing less than two ounces, the M2X features a sleek, compact, and crush-resistant aluminum casing that safeguards against shock and vibration while its grooved fin heatsink base aids heat dissipation for a cooling effect up to 15°C*, protecting drives from overheating and thermal throttling.

*When using the included silica gel thermal pad. Results may vary depending on environment.

Fully Bus-Powered

M2X enclosure adapters are powered directly through the USB port, eliminating the need to carry an additional power cord.

Plug and Play

Access your files from any USB compliant notebook or device with this hot-swappable plug and play M2X enclosure adapter. No additional drivers or software required.

Includes Two 12-inch USB 3.1 Cables

Each MyDigitalSSD M2X includes two foot-long USB 3.1 cables for plug and play connectivity in either USB Type-C (USB-C) or traditional USB Type-A (USB-A) ports.

Mounting Screw Kit

M2X enclosure adapters also include a mini screwdriver and M.2 mounting screw pack for quick and convenient drive installation.

Note: MyDigitalSSD M2X NVMe USB 3.1 Gen 2 enclosure adapters are NOT compatible with SATA, AHCI PCIe, or B key NVMe PCIe M.2 SSDs.

MyDigitalSSD M2X USB 3.1 Gen 2 M.2 PCIe NVMe SSD Adapter Enclosure

Features

  • Supports 2242 / 2260 / 2280 NVMe PCIe M.2 M SSDs up to 2TB
  • Supports high (double-sided) and low (single-sided) profile form factors
  • Lightweight, shock and crush-resistant aluminum casing
  • Grooved fin heatsink design reduces overheating and thermal throttling
  • JMicron JMS583 bridge controller
  • USB 3.1 Gen 2 (10Gbps) speeds
  • USB 3.0 and USB 2.0 compatible
  • USB Attached SCSI Protocol (UASP) support
  • Bulk-only transfer (BOT) support
  • TRIM support
  • Fully bus-powered
  • No driver installation required
  • Plug and play
  • Hot swappable
  • Supports 3.3V I/O
  • Embedded 5V to 1.0V voltage regulator
  • Embedded 5V to 3.3V linear voltage regulator (LDO)
  • Power/activity LED indicator
  • Includes two USB 3.1 cables: USB-C and USB-A
  • Compatible with PC, Mac, Linux, iOS and Android
  • 1 year warranty

Performance Testing

Test Environment

PC: MSI Z270 SLI Plus / Intel Core i7-7700K 4.2GHz / 32GB RAM / Windows 10 Pro 64-bit / ASUS ThunderboltEX 3 Expansion Card / Type C Port
SSD: 1TB MyDigitalSSD SBX 80mm (2280) M.2 PCIe Gen3 x2 NVMe SSD

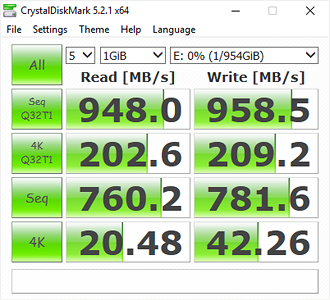

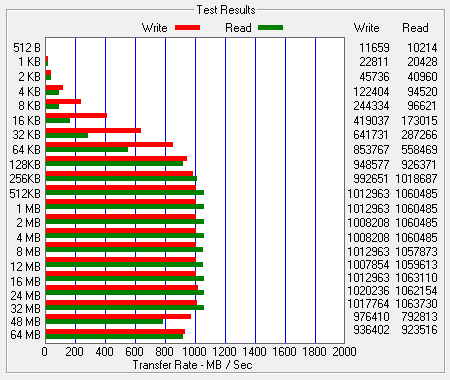

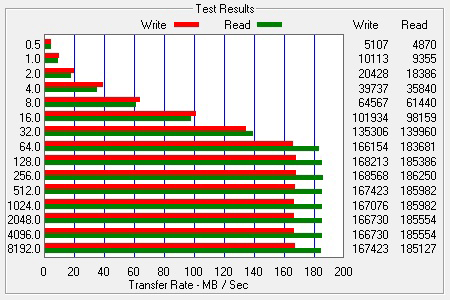

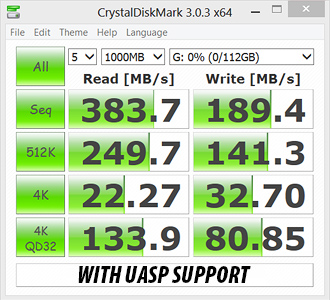

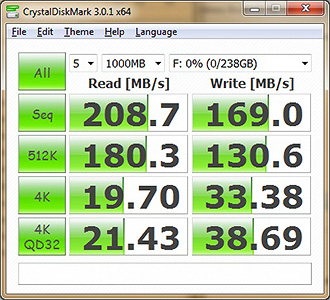

CrystalDiskMark Bench Results     ATTO Bench Results

Disclaimer: Results may vary based on computer configuration, environment, and testing methods.

News, Reviews, & Awards

Firmware Updates

08/10/20

Firmware Version 0209 for MyDigitalSSD M2X Adapter w/ JMicron JMS583 Controller
344KB | OS: Windows 7 and up

Users can upgrade directly to FW version 0206 from versions 0203, 0204, 0205, or 0206. No additional updates necessary.

Note: Remove SSD from enclosure before performing the update.

Specifications

SKU: MDNVME-M2X-USB
Capacity: Up to 2TB
SSD Compatibility: M.2 PCIe 3.0 NVMe SSD (M-Key)
SSD Form Factors: 80mm (2280)
60mm (2260)
42mm (2242)
Drive Bays: 1
Interface: USB 3.1 Gen 2 (10 Gbps)
Bridge Controller: JMicron JMS583
Operating Temperature: 0°C ~ 40°C
Storage Temperature: -10°C ~ 65°C
Operating Humidity: 10 ~ 90% RH
Storage Humidity: 5 ~ 95% RH
Voltage: 3.3V I/O
LED Indicator: White (Power and Activity)
Power Source: USB-Powered
Housing Color: Matte Black
Housing Material: Aluminum
Dimensions: 99mm x 42mm x 13mm
Weight: 1.7 oz (48g)
Weight with SSD: 1.76 oz (50g)
4Kn Support: Yes
UASP Support: Yes
BOT Support: Yes
TRIM Support: Yes
Endurance: 1,000,000 hours
OS Compatibility: PC, Mac, Linux, iOS, Android
Software Required: None
Drivers Required: None
Compliance: RoHS / CE / FCC
Package Contents: 1 x MyDigitalSSD M2X USB 3.1 M.2 NVMe PCIe SSD Enclosure Adapter
1 x 12 inch (1 ft) 3.1 USB-C to USB A Cable
1 x 12 inch (1 ft) 3.1 USB-C to USB-C Cable
1 x M.2 SSD Thermal Pad (70 x 20 x 2mm)
1 x M.2 SSD Mounting Screw Kit
1 x Mini Screwdriver
Warranty: 1 Year

Return to top

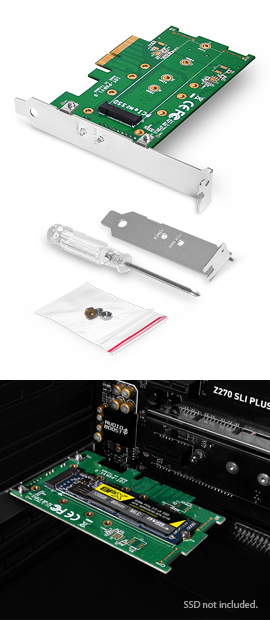

MyDigitalSSD UX Universal M.2 PCIe NVMe SSD to PCI Express 3.0 x4 Adapter Card

Details

UX | 2280 / 2260 / 2242 / 2230 NVMe M.2 SSD | PCI Express 3.0 x4 Lane Host Adapter

No M.2 port? No problem. The MyDigitalSSD UX Universal adapter card helps expand storage and improve performance of your server, desktop PC, or small form factor computer by mounting any NVMe M.2 SSD in any PCIe bus slot.

With PCI Express 3.0 support and +3.3V/3A power, the UX adapter card offers full and unrestricted bandwith to take advantage of NVMe speeds up to 32Gb/s (using a PCIe x4 slot) and optimize your computer's efficiency, allowing you to get more done in less time.

Compatible with PCIe Gen3 and PCIe Gen2 M.2 SSDs in 80mm (2280), 60mm (2260), 42mm (2242), and 30mm (2230) form factors thanks to an adjustable stand-off and multiple mounting holes, UX adapter cards are OS independent with no drivers required, for a fast, hassle-free setup by plugging into a PCIe x4, x8 or x16 slots in today's hottest motherboards.

Each UX adapter card comes equipped with a full-height bracket and includes a half-height low-profile bracket, screwdriver, and M.2 mounting screw pack for quick and convenient installation in PC cases of all sizes.

Additionally, the MyDigitalSSD UX adapter card also provides peace of mind as a simple and cost-effective way to access and recover data from M.2 drives pulled from other laptops or computers in cases of hardware failure or to simply continue using the drive for storage and backup purposes.

Features

  • Supports 2280 / 2260 / 2242 / 2230 PCIe Gen3 and PCIe Gen2 M.2 NGFF
  • Supports double sided SSDs with a bottom height up to 1.25mm
  • Compatible with PCIe 1.0, PCIe 2.0, and PCIe 3.0 motherboards
  • Fits in any PCIe x4, x8, x16 slot
  • +3.3V/3A power supply
  • Individual LED displays for power and data transfer status
  • Compliant with 39Gbps PCI Express 3.0
  • Supports high and low-profile form factors
  • Transparent to the operating system; no driver installation required
  • Supports all OS: Windows / Mac / Linux / etc.
  • Fully RoHS compliant
  • 1 Year Warranty

Note: The UX adapter is designed to work only with M key M.2 PCIe SSD. It is NOT compatible with B key PCIe or B key SATA M.2 SSDs.

MyDigitalSSD UX M.2 PCIe NVMe SSD to PCI Express Adapter Card

Where to Buy*

Buy this product at Amazon.com

USA

Buy this product at MyDigitalDiscount.com

USA

* Reseller prices may vary.

Specifications

SKU:
MDNVMEM2-UX-ADPT
Interface: PCI Express 3.0 x4
(Compatible with PCI Express x8, and x16 slots)
SSD Compatibility: M.2 NVMe PCIe SSDs (M key design)
SSD Form Factors: 80mm (2280)
60mm (2260)
42mm (2242)
30mm (2230)
Voltage: +3.3V/3A
Operating Temperature: 0°C ~ 70°C
Storage Temperature: -20°C ~ 70°C
Humidity: 5 ~ 95% RH
LED Display: Power: Blue
PCIe SSD: Green
Dimensions: 105mm x 68mm x 6mm
Weight: 1.25 oz
OS Support: All Windows / Mac / Linux / etc.
Required Drivers: None
Compliance: RoHS / CE / FCC
Compatible Motherboards: Chipset: Z170 / H170 / X99 / Z97 / H97 / B85
Package Contents: 1 x MyDigitalSSD UX M.2 PCI Express Adapter Card
1 x Low Profile PCIe Bracket
1 x M.2 SSD Mounting Screw Pack
Warranty: 1 Year

Return to top



MyDigitalSSD BOOST USB 3.1 SuperSpeed Plus UASP Dual mSATA SSD RAID Enclosure

Details

BOOST Series | 50mm mSATA | 25mm mSATA Mini | USB 3.1 SSP UASP | Mobile RAID

The MyDigitalSSD BOOST USB 3.1 SuperSpeed Plus (SSP) enclosure turns any full-size 50mm or half-size 25mm mSATA SSD into an ultra-portable external storage device, or any two mSATA SSDs into a mobile hardware RAID solution.

Ideal for backing up primary drives, accessing data/apps on the go, high-speed file transfer between devices, expanding your current storage, or running a mobile operating system - the MyDigitalSSD BOOST enclosure helps get more from your mSATA drive(s).

USB 3.1 SuperSpeed Plus (SSP)

The MyDigitalSSD BOOST enclosure is designed to maximize performance of any mSATA SSDs by utilizing 10Gbps USB 3.1 SuperSpeed Plus (SSP) connectivity.

Additionally, USB 3.1 standard is backward compatible with USB 3.0/2.0/1.1 host connections for use in virtually any USB device.

UASP Support

Enhanced with UASP (USB Attached SCSI Protocol) support, the BOOST enclosure offers transfer speeds up to 70% faster than traditional USB 3.0 in UASP-enabled host devices by reducing latency and processor usage to utilize the full potential of the mSATA drive(s) inside it. The results of which is near-instant access to your data anytime, at home or on the go.

Durable Compact Design

No bigger than the average wallet, the MyDigitalSSD BOOST mSATA enclosure features a lightweight, crush resistant aluminum casing that safeguards against shock and vibration for optimum data protection in any environment.

Bus-Powered

BOOST mSATA enclosures are powered directly through the USB port, eliminating the need to carry an additional power cord.

Plug and Play

Access your files from any USB compliant notebook or device with this hot-swappable plug and play BOOST SSD enclosure. No additional drivers or software required.

RAID or Non-RAID Options

Fit the BOOST with two mSATA SSDs and take control of how your data is stored.

Choose between a RAID 0 configuration that maximizes speed and capacity by spreading data across both drives or a RAID 1 configuration that mirrors your data on both drives to secure your files if one should ever fail.

Non-RAID options are also supported with SPAN and JBOD mode.

Data Backup Made Easy

Pair the MyDigitalSSD BOOST mSATA enclosure with your favorite cloning or imaging software to quickly and effortlessly copy your data from one drive to another. Utilizing the enclosure's customizable storage capacity and blazing fast USB 3.1 transfer speeds, users can manage their data in any way they see fit at a fraction of the time of external USB 3.0 hard drives.

Includes 2 18-inch USB Cables

Each BOOST enclosure includes two 18" USB cables to maximize connectivity. One, a 3.0 (USB 3.1 Gen 1) USB-A to Micro-B cable for use in any standard USB port. The other, a 3.1 USB-C to Micro-B cable for use in newer desktops, expansion cards, laptops, and mobile devices that have a USB-C port.

Features

  • 50mm (Full) and 25mm (Half Size) mSATA SSD compatibility
  • Durable matte black/red aluminum casing with silver trim
  • ASMedia ASM1352R Chipset
  • USB3.1, USB3.0, USB2.0, and USB1.1 operation support
  • Supports H/W RAID 0, RAID 1, SPAN, and JBOD modes
  • Compliant with USB 3.1 specification revision 1.0
  • Compliant with USB 2.0 specification revision 2.0
  • Compliant with Serial ATA specification revision 3.2
  • Windows, Linux, and Mac OS support
  • TRIM/UNMAP support
  • Plug and play
  • Hot swappable

MyDigitalSSD BOOST USB 3.1 SSP Dual mSATA SSD RAID Enclosure

Where to Buy*

Buy this product at Amazon.com

USA

Buy this product at MyDigitalDiscount.com

USA

* Reseller prices may vary.

Specifications

SKU:
Red: MDMSR-BST-USB3-RD
Black: MDMSR-BST-USB3-BK
Capacity: Up to 2TB
Form Factor: 2x 50mm (Full) or 25mm (Half Size) mSATA SSDs
RAID & Non-RAID Support: RAID 0, RAID 1, SPAN, JBOD Mode
Interface: USB 3.1 SSP with UASP
Chipset: ASMedia ASM1352R
Interface Transfer Rate: USB 3.1 SuperSpeed+: 10Gbps
USB 3.0 SuperSpeed: 5Gbps
USB 2.0 High Speed: 480Mbps
USB 1.0 Full Speed: 12Mbps
USB 1.0 Low Speed: 1.5Mbps
Plug and Play (PnP): Yes
Hot Swappable: Yes
TRIM Support: Yes
UNMAP Support: Yes
Operating Temperature: 0°C ~ 40°C
Storage Temperature: -20°C ~ 70°C
Housing Material: Aluminum
Housing Color: Matte red or black with silver trim
Dimensions: 98mm x 80mm x 17mm
Weight: Enclosure: 3 oz.
Enclosure with SSDs: up to 5 oz.
USB 3.1 UASP Mode: Windows 10 / 8.1 / 8
Mac OS X 10.8 or newer
USB 3.1 Support: Windows 10 / 8.1 / 8 / 7
Mac OS X 10.8
Linux kernel 4.6 or newer
USB 3 UASP Mode: Windows 10 / 8.1 / 8
Mac OS X 10.8 or newer
USB 3 Support: Windows 10 / 8.1 / 8 / 7 / Vista / XP
Mac OS X 10.8 or newer
USB 2 Support: Windows 2000 and above
Mac OS 10.x
Linux
Compliance: RoHS / CE / FCC
Package Contents: MyDigitalSSD BOOST USB 3.1 SSP dual mSATA SSD RAID enclosure
18 inch (1.5 ft) USB 3.0 (USB 3.1 Gen 1) USB-A to Micro-B cable
18 inch (1.5 ft) USB 3.1 USB-C to Micro-B cable
4 sets of SSD mounting screws & washers
Screwdriver
Warranty: 1 Year

Return to top

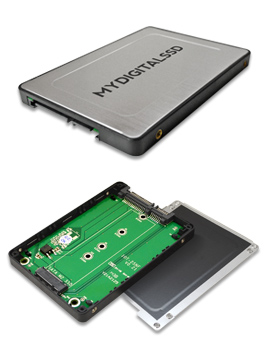

MyDigitalSSD M.2 NGFF to 2.5" SATA III/6G SSD Adapter Enclosure

Details

Turns any SATA M.2 NGFF SSD into a 2.5" SATA SSD

The MyDigitalSSD universal M.2 NGFF to 2.5" SATA enclosure adapter is designed to enable any SATA II or SATA III (6G) 30mm (2230), 42mm (2242), 60mm (2260), or 80mm (2280) M.2 solid state drive to be used as a direct replacement for a 2.5" SATA hard drive - giving users the ability to capitalize on the high speed, durability, shock resistance, and low power consumption of an SSD in any notebook or desktop computer with a standard SATA port.

Once installed, the M.2 appears as an ordinary SATA hard drive to any OS and can be configured as a boot device.

Features

  • Enable M.2 NGFF SSD to be used like ordinary 2.5" SATA HDD/SSD
  • Convert M.2 connector to SATA connector
  • Compatible with SATA II and SATA III 6G mSATA drives
  • Compatible with port multiplier
  • Mounts directly onto notebook hard drive bay with SATA connector
  • Can be mounted onto any 3.5" drive enclosure, 3.5" drive bay, 2.5" drive enclosure, slim CD drive bay with mounting brackets
  • Can be the primary bootable device containing the OS and applications

MyDigitalSSD M.2 NGFF to 2.5 Inch SATA Adapter Enclosure

Specifications

SKU:
MDM2-2.5-9ADPT
Connections: Interior:
30mm (2230) M.2 NGFF
42mm (2242) M.2 NGFF
60mm (2260 M.2 NGFF
80mm (2280) M.2 NGFF
Exterior: 2.5" SATA II/III
Speed: Up to 6 Gbps*
*Actual speed depends on SSD installed
Dimensions: 100 x 70 x 8 mm
Weight: 59g with SSD
Storage Temperature: -40 °C to + 85 °C
Package Contents: M.2 NGFF to 2.5" SATA adapter
Enclosure adapter screws (4)
M.2 NGFF drive screws (2)
Screwdriver
Warranty: 1 Year

Return to top



MyDigitalSSD Bullet Proof 4 (BP4) USB 3.0 mSATA SSD Enclosure

Details

BP4 | 50mm mSATA | 25mm Half Size mSATA Mini | SuperSpeed USB 3.0 Enclosure Adapter

MyDigitalSSD's Bullet Proof 4 (BP4) USB 3.0 mSATA Adapter Enclosure allows users to turn almost any SATA 50mm mSATA or 25mm Half Size mSATA Mini SSD into an ultra portable external storage device.

Small enough to fit in your pocket, the BP4 USB 3.0 mSATA Enclosure is great for cloning an existing HDD/SSD to a new one, backing up data, or accessing files on older drives after upgrading.

Features

  • Speeds up to 500MB/s with USB 3.0 UASP
  • Supports SATA I, II & III/6G mSATA SSDs
  • Great for cloning new mSATA Drives
  • Compatible with USB 3.0 & USB 2.0
  • Plug and Play with PC or Mac

Solid State Drive not included.

Note: Optimum speeds will be had when plugged into a USB 3.0 port with UASP support. This device is also backwards compatible, meaning it can be used in USB 2.0 ports at USB 2.0 transfer rates.

MyDigitalSSD BP4 USB 3.0 mSATA Enclosure

Where to Buy*

Buy this product at Amazon.com

USA

Buy this product at MyDigitalDiscount.com

USA

* Reseller prices may vary.

Reviews & Awards

MyDigitalSSD BP4 USB 3.0 mSATA SSD Enclosure earns TweakTown's Must Have Best Value Award
Click here for the full review.

Specifications

SKU:
MDMS-BP4-USB3
Controller: ASMedia 1053E/1153E USB 3.0 Controller
Internal SSD Form Factor: 50mm mSATA
25mm Half Size mSATA Mini
Interface: USB 3.0 with UASP Support
Interface Transfer Rate: USB 3.0 5Gbps
USB 2.0 480Mbps
Dimensions: 87 x 48 x 10 mm
Weight: 1.2 oz (without cable)
USB 2.0 Support: Windows 2000 and above
Mac OS 10.x
Linux
USB 3.0 Support: Windows XP / Vista / Windows 7 / Windows 8
Mac OS X 10.8
USB 3.0 UASP Mode: Windows 8
Mac OS X 10.8
Package Contents: USB Enclosure / 1' USB Cable / Screwdriver / Screws
Warranty: 1 Year

Return to top



MyDigitalSSD Bullet Proof USB 3.0 2.5" SATA HDD/SSD Enclosure

Details

MyDigitalSSD's Bullet Proof enclosure turns any 2.5 inch SATA (I, II, or III/6G) Hard Drive (HDD) or Solid State Drive (SSD) into an ultra portable storage device. Stylish and durable, this external USB 3.0 enclosure is great for cloning an existing drive to a new one or backing up data after upgrading your PC or Mac.

Bullet Proof enclosures are completely bus powered, meaning no bulky AC adapter. Simply tuck the enclosure and connecting cable into the included carrying sleeve to be prepared for virtually any mobile data need - having your music, photos, and personal data at your fingertips whenever you are.

Features

  • Durable and stylish design - black brushed aluminum with silver trim
  • Supports 2.5 Inch Serial ATA (SATA) I/II/III drives
  • ASMedia 1053 USB 3.0 Controller
  • Compliant to USB 3.0 specifications
  • Compliant to USB 2.0 specifications
  • Supports SATA I/II and 6G SSDs
  • Hot-swappable
  • Plug and Play (PnP)

Hard Drive/Solid State Drive not included.

Note: Optimum speeds will be had when plugged into a USB 3.0 port. This device it is also backwards compatible, meaning it can be used in USB 2.0 ports at USB 2.0 transfer rates.

MyDigitalSSD USB 3.0 2.5 Inch SATA Enclosure

Specifications

SKU:
MD25-BP-USB3
Chipset: ASMedia 1053
 Form Factor: 2.5 Inch Serial ATA (SATA) I/II/III
Interface: USB 3.0
Compliance: USB 3.0, USB 2.0
Max Data Transfer Rate: USB 3.0 - 625MB/s
Power Supply: Bus Power via USB 2.0 or 3.0 port
Material: Aluminum
Color: Black, Silver
Dimensions: 123mm x 75mm x 13mm
Weight: 2.0 ounces (56g)
Features: LED & USB 3.0 Port
Compatibility: PC, Mac, Linux

Return to top



MyDigitalSSD Bullet Proof USB 3.1 M.2 NGFF Enclosure Adapter

Details

MyDigitalSSD Bullet Proof SuperSpeed USB 3.1 M.2 NGFF Enclosure | Supports UASP

Use this universal enclosure to turn any 30mm (2230), 42mm (2242), 60mm (2260), or 80mm (2280) SATA M.2 NGFF SSD into an external USB 3.1 portable storage device. Slim enough for to fit in your pocket, the Bullet Proof enclosure adapter is great for cloning your existing drive to a new one or making use of your old drive after upgrading.

Note: Optimum speeds will be had when plugged into a USB 3.1 port. This device it is also backwards compatible for use in USB 3.0 and USB 2.0 ports at the maximum transfer rates each port allows.

Features

  • ASMedia 1351 USB 3.1 Controller with UASP Support
  • Slim and stylish design - matte black with silver trim
  • Durable aluminum casing
  • Supports 30mm (2230), 42mm (2242), 60mm (2260) & 80mm (2280) M.2 NGFF form factors
  • Compliant to USB 3.0 specifications
  • Compliant to USB 2.0 specifications
  • Supports SATA I/II and 6G SSDs
  • Hot-swappable
  • Plug and Play (PnP)

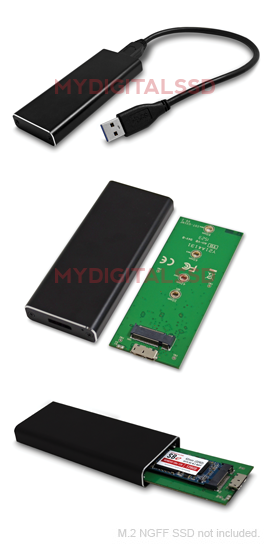

MyDigitalSSD BP Universal USB 3.1 M.2 NGFF Enclosure Adapter

USB Attached SCSI Protocol (UASP) Technology

UAS is a computer protocol used to move data to and from USB storage devices. Systems that support UAS will see better results due to the capabilities listed below. Without UAS, USB 3.0 R/W speeds will still reach 190/160.

UAS Capabilities

  • Maximizes bus utilization through the use of streams in USB 3.1.
  • Provides a modest increase in bus utilization in USB 2.0
  • Provides a mechanism for the device to store several commands and optimize the use of its media
  • Complies with current command and transport standards
  • Eliminates much of the round trip time between command phases - Hidden behind queuing
  • Switches the storage driver to a queuing model

Performance Testing

Test SSD: MyDigitalSSD 128GB Super Boot Drive 42mm (2242) SATA III/6G M.2 NGFF SSD

Via USB 3.0 Port with UASP
Test PC: Lenovo Y50P Gaming Laptop

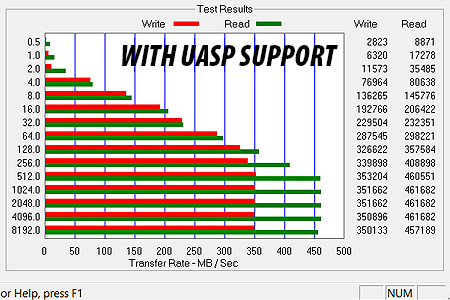

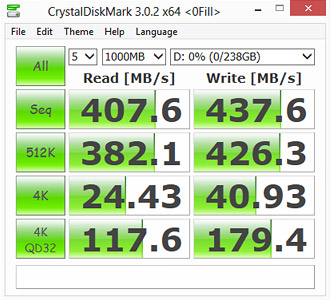

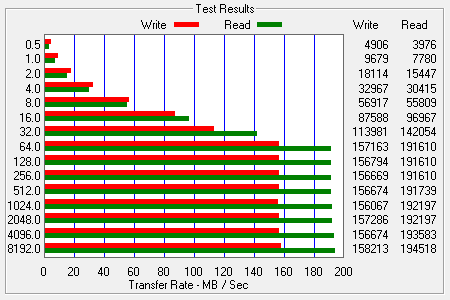

CrystalDiskMark 3.0.1 Bench Results   ATTO Bench Results

Via USB 3.0 Port without UASP
Test PC: Desktop PC with ASUS P6T Deluxe motherboard and ASUS U3S6 Adapter

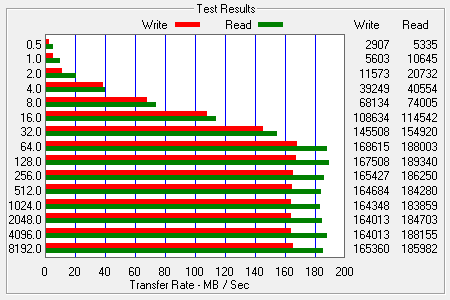

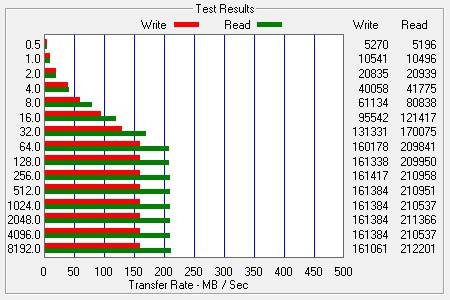

CrystalDiskMark 3.0.1 Bench Results   ATTO Bench Results

Specifications

SKU:
MDM2-BP-USB3
Form Factor: 2230/2242/2260/2280 SATA M.2 NGFF
Interface: USB 3.1
Compliance: USB 3.0, USB 2.0
Material: Aluminum
Color: Black, Silver
Dimensions: 99mm x 42mm x 13mm
Rear Panel Features: USB 3.1 port, LED
Package Contents: USB Enclosure
1' USB Cable
Screwdriver
Screws
Warranty: 1 Year

Return to top



MyDigitalSSD mSATA to SATA II/III SSD Adapter with Tower Brackets

Details

This MyDigitalSSD mSATA to 2.5" SATA Adapter allows users to operate one mSATA (II or III/6G) SSD, originally intended for tablets and notebooks, in any desktop or tower PC with a standard SATA (I, II, III/6G) connection.

Use of this adapter delivers maximum speed and performance allowed by your PC when using an mSATA SSD as either a boot drive (to run an operating system) or cache drive (in tandem with a hard drive).

This adapter is designed for mSATA SSDs only.

It is NOT compatible with 50mm Mini PCI-e SATA SSDs.

MyDigitalSSD mSATA to 2.5 Inch SATA SSD Adapter with Tower Brackets

Specifications

SKU:
MDMS-MSATA-BRKT
Form Factor: 50mm mSATA
25mm mSATA
Connection: 2.5" SATA
3.5" SATA
Package Contents: mSATA to 2.5" SATA adapter
Full-size Tower Bracket
Low-profile Tower Bracket
Screws
Warranty: 1 Year

Return to top

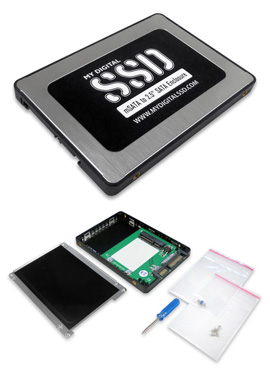

MyDigitalSSD mSATA to 2.5" SATA III/6G SSD Adapter Enclosure

Details

Turn any SATA II or SATA III (6G) mSATA SSD into a 2.5" SATA SSD

The MyDigitalSSD mSATA to 2.5" SATA Enclosure Adapter is designed to enable a 50mm mSATA solid state drive to be used as a direct replacement for a 2.5" SATA hard drive, giving users the ability to capitalize on the high speed, durability, shock resistance, and low power consumption of an SSD in any notebook or desktop computer with a standard SATA port.

Once installed, the mSATA appears as an ordinary SATA hard drive to any OS and can be configured as a boot device.

Features

  • Enable mSATA SSD to be used like ordinary 2.5" SATA HDD/SSD
  • Convert mSATA connector to SATA connector
  • Compatible with SATA II and SATA III 6G mSATA drives
  • Compatible with port multiplier
  • Mounts directly onto notebook hard drive bay with SATA connector
  • Can be mounted onto any 3.5" drive enclosure, 3.5" drive bay, 2.5" drive enclosure, slim CD drive bay with a mounting brackets
  • Can be the primary bootable device containing the OS and applications

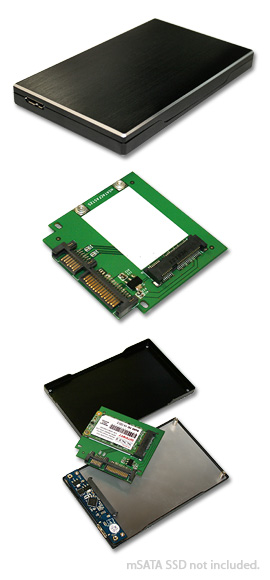

MyDigitalSSD BP USB 3.0 mSATA Enclosure

Specifications

SKU:
MDMS-2.5-9ADPT
Connections: Interior: 50mm mSATA II/III
Exterior: 2.5" SATA II/III
Speed: Up to 6 Gbps*
*Actual speed depends on SSD installed
Dimensions: 100 x 70 x 8 mm
Weight: 59g with SSD
Storage Temperature: -40 °C to + 85 °C
Package Contents: mSATA to 2.5" SATA adapter
Enclosure adapter screws (4)
mSATA drive screws (2)
Screwdriver
Warranty: 1 Year

Return to top



MyDigitalSSD Bullet Proof USB 3.1 mSATA SSD Enclosure Adapter

Details

MyDigitalSSD Bullet Proof SuperSpeed USB 3.1 mSATA Enclosure | Supports UASP

Use this enclosure to turn any 50mm mSATA (II or III/6G) SSD into an external USB 3.1 portable storage device. Small enough for to fit in your pocket, the Bullet Proof enclosure adapter is great for cloning your existing drive to a new one or, simply, making use of your old drive after upgrading.

Note: Optimum speeds will be had when plugged into a USB 3.1 port. This device it is also backwards compatible for use in USB 3.0 and USB 2.0 ports at the maximum transfer rates each port allows.

Features

  • ASMedia 1351 USB 3.1 Controller with UASP Support
  • Slim and stylish design - matte black with silver trim
  • Durable aluminum casing
  • Adapter board clips hold drive securely and allow for fast drive swapping
  • Supports 50mm and 25mm mSATA drives
  • Compliant to USB 3.0 specifications
  • Compliant to USB 2.0 specifications
  • Supports SATA I/II and 6G SSDs
  • Hot-swappable
  • Plug and Play (PnP)

This enclosure is designed for mSATA SSDs only.
It is NOT compatible with 50mm Mini PCI-e SATA SSDs.

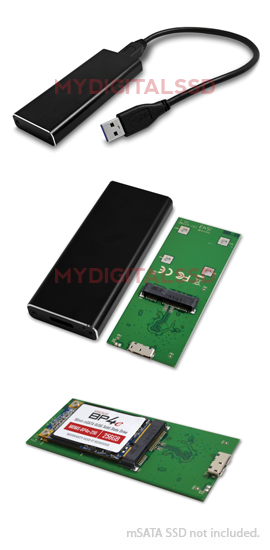

MyDigitalSSD BP USB 3.1 mSATA Enclosure

USB Attached SCSI Protocol (UASP) Technology

UAS is a computer protocol used to move data to and from USB storage devices. Systems that support UAS will see better results due to the capabilities listed below.Without UAS, USB 3.0 R/W speeds will still reach 190/160.

UAS Capabilities

  • Maximizes bus utilization through the use of streams in USB 3.1
  • Provides a modest increase in bus utilization in USB 2.0
  • Provides a mechanism for the device to store several commands and optimize the use of its media
  • Complies with current command and transport standards
  • Eliminates much of the round trip time between command phases - Hidden behind queuing
  • Switches the storage driver to a queuing model

Performance Testing

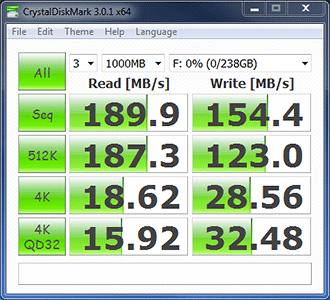

Test SSD: MyDigitalSSD 256GB Smart Series SATA III (6G) SandForce mSATA SSD

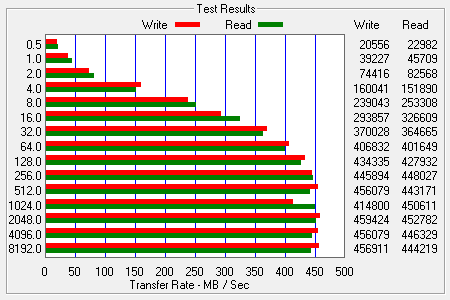

Via USB 3.0 Port with UASP

CrystalDiskMark 3.0.1 Bench Results    ATTO Bench Results

Via USB 3.0 Port without UASP

CrystalDiskMark 3.0.1 Bench Results    ATTO Bench Results

Reviews & Awards

MyDigitalSSD Bullet Proof USB 3.0 mSATA SSD Enclosure earns TweakTown's Must Have Best Features Award
Click here for the full review.

Specifications

SKU:
MDMS-BP-USB3
Form Factor: mSATA (25mm, 50mm)
Interface: USB 3.1
Compliance: USB 3.0, USB 2.0
Material: Aluminum
Color: Black, Silver
Dimensions: 99mm x 42mm x 13mm
Rear Panel Features: USB 3.1 port, LED
Package Contents: USB Enclosure
1' USB Cable
Screwdriver
Warranty: 1 Year

Return to top



MyDigitalSSD Better USB 3.0 mSATA / 2.5" SATA SSD Enclosure

Details

MyDigitalSSD USB 3.0 External 2.5" SATA SSD/HDD Enclosure with 50mm mSATA Adapter

Use this enclosure and adapter to turn any 50mm mSATA SSD or 2.5" SATA hard drive/solid state drive into an external USB 3.0 portable storage device.

Features

  • Slim design with Black with Silver Trim
  • Supports 50mm and 25mm mSATA SSDs
  • Supports most 2.5-inch SATA hard drives and SSD drives
  • Aluminum case enclosure
  • Compliant to USB 3.0 specifications
  • Compliant to USB 2.0 specifications
  • Supports SATA I/II and 6G hard drives / SSDs
  • Hot Swappable
  • Plug and Play

About the Enclosure

MyDigitalSSD's slim aluminum enclosure and adapter combo is great for cloning your existing drive to your new one or, simply, making use of your old drive after upgrading to a new one. Optimum speeds will be had when plugging this device into a USB 3.0 port but it is also backwards compatible, meaning it can be used in USB 2.0 ports at USB 2.0 transfer rates.

About the Adapter

The MyDigitalSSD mSATA to 2.5" SATA Adapter allows users to operate one mSATA (II or III/6G) SSD, made for tablets and notebooks, in any device with a standard 2.5" SATA (I, II, III/6G) connection.

Whether you're plugging the adapter into the included USB 3.0 Enclosure or a standard SATA port (notebook/desktop/workstation), the mSATA drive will deliver maximum speed allowed by the device it's being used in for optimum performance.

This adapter is designed for mSATA SSDs only. It is NOT compatible with 50mm Mini PCI-e SATA SSDs.

Note: Adapter and Enclosure also sold separately.

MyDigitalSSD USB 3.0 Adapter Enclosure Combo

Performance Testing

MyDigitalSSD 256GB BP3 SATA III (6G) mSATA SSD via USB 3.0 Port

CrystalDiskMark 3.0.1 Bench Results    ATTO Bench Results

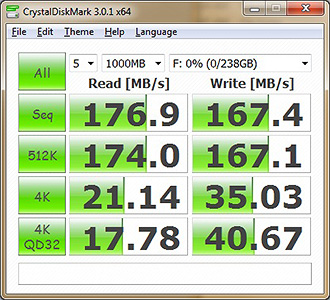

MyDigitalSSD 256GB Smart Series SATA III (6G) SandForce mSATA SSD via USB 3.0 Port

CrystalDiskMark 3.0.1 Bench Results    ATTO Bench Results

Specifications

Part : SKU
Combo: MDMS-USB3
Adapter: MDMS-MSATA-ADPT
Enclosure: MDMS-2.5-USB3
Enclosure Specifications:
Form Factor: 2.5" SATA HDD or SSD
Interface: USB 3.0
Compliance: USB 3.0, USB 2.0
Material: Aluminum
Color: Black, Silver
Dimensions: 123mm x 75mm x 8mm
Rear Panel Features: USB 3.0 port, LED
Warranty: 1 Year
Adapter Specifications:
Form Factor: 50mm and 25mm mSATA
Connection: 2.5" SATA
Warranty: 1 Year

Return to top
